Description

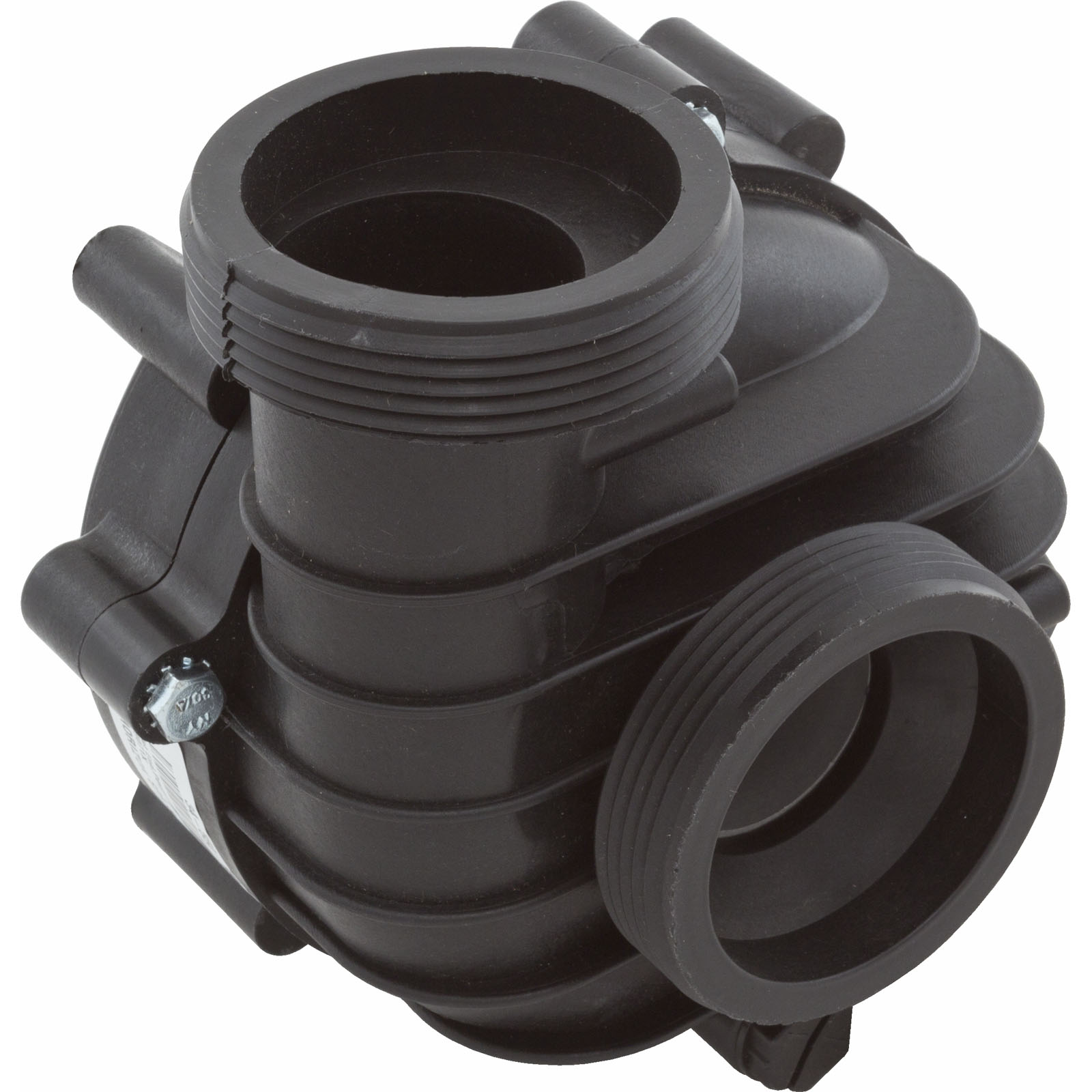

Power-Right Reverse Side Discharge Wet End (4.0HP) – PR264-121R
Product Overview
As a retailer of hot tub spare parts, I’m featuring this specialized Power-Right ‘Reverse’ wet end designed for the 4HP Dually Pump system. This high-performance model features a distinctive 4-bolt design and left-side discharge configuration.
Key Features
- High-output reverse configuration
- 2″ MBT (Male Buttress Thread) connections
- 48 frame compatibility
- 4-bolt suction housing design
- Complete component assembly
- Specific Dually pump compatibility
What’s Included
- Professional-grade volute housing
- High-performance mechanical seal
- 4.0HP rated impeller
- Premium wear ring
- Volute O-ring
- Seal plate
- Complete bolt kit
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | PR264-121R |
| Horsepower Rating | 4.0 HP |
| Frame Size | 48 Frame |
| Connection Size | 2″ MBT |
| Discharge Type | Left Side |
| Housing Design | 4-bolt configuration |
| Construction | Commercial-grade materials |
| Series | Power-Right Dually |
| Compatibility | Model 9071X |
| Build Type | Heavy-duty construction |
Critical Design Note
- Features 4-bolt suction housing design
- Must verify bolt count before ordering
- Specific to reverse/left discharge configuration
Compatibility Information
- Designed for 4.0HP applications
- 48 frame mounting system
- 2″ plumbing connections
- Dually pump series specific
- Left-side discharge orientation
Installation Notes
- Motor and unions not included
- Verify bolt pattern count
- Confirm discharge orientation
- Check frame specifications
- Ensure proper alignment
Application Use
Ideal for:
- High-performance spa systems
- Maximum flow requirements
- Specific Dually pump replacements
- Professional installations
- Left-side plumbing configurations
- High-demand applications
