Description

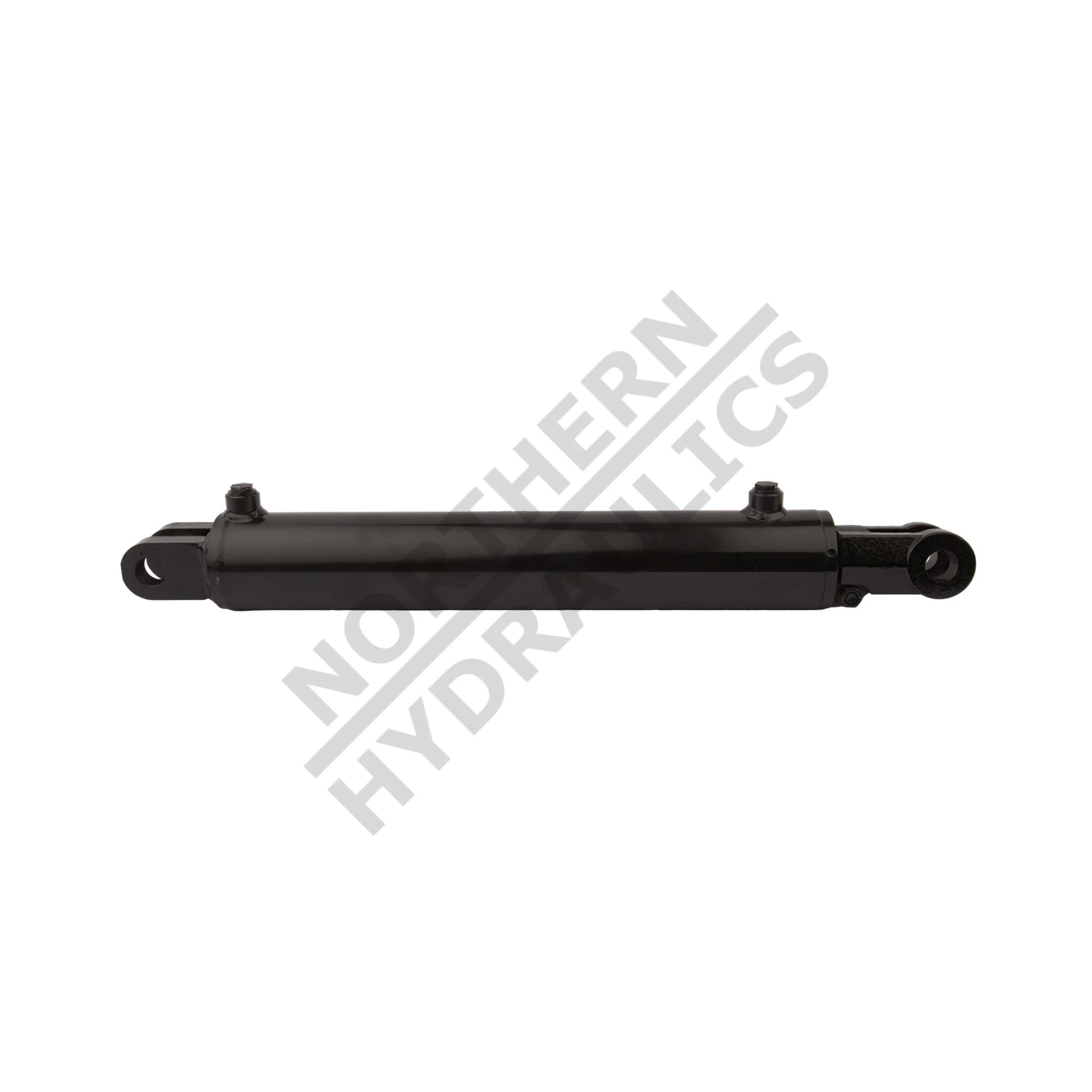

The WCLN4x20 Double Acting Hydraulic Cylinder is designed for demanding applications requiring durable performance and reliability. With a powerful 3500 PSI rating and a robust column load capacity of 37,000 LBs, this hydraulic cylinder is built to withstand the toughest jobs.
- Bore Diameter: 4.5 inches
- Rod Diameter: 2 inches
- Stroke Length: 20 inches
- Overall Length: 32.25 inches
- Extended Length: 50.25 inches
- Retracted Length: 30.25 inches
- Action: Double Acting
- Ports: SAE 8
- Oil Volume: 4.35 quarts
- Rod Type: Chrome Plated
- Rod End: Clevis
- Style: Welded
- Weight: 65 LBs
- Manufactured by: Northern Hydraulics
- Pressure Rating: 3500 PSI
- Column Load: 37,000 LBs
This hydraulic cylinder is ideal for various applications, including construction, agricultural equipment, and industrial machinery, providing exceptional strength and efficiency.
Note: Always ensure proper measurements and application suitability to maximize the performance and longevity of your hydraulic cylinder. Improper use may result in damage that is not covered under warranty.
Order now and experience next-level hydraulic performance!
