Description
Details

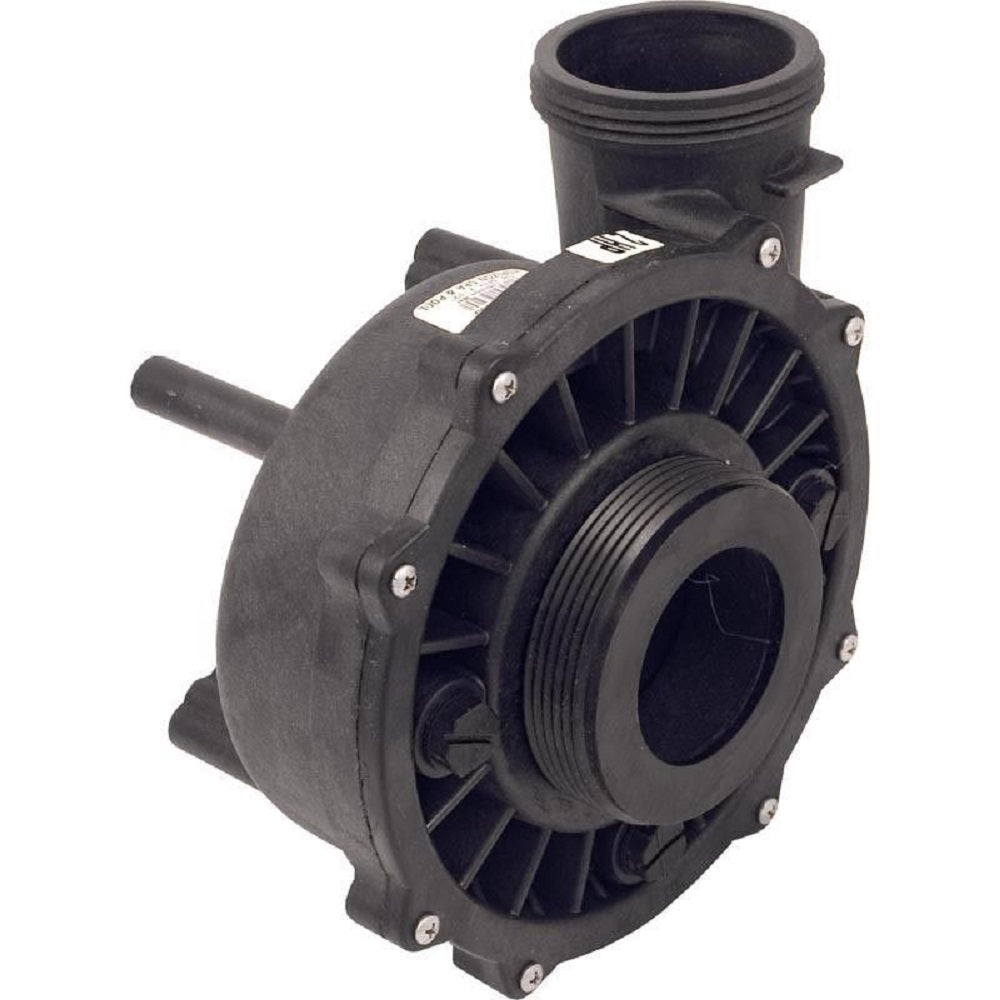

This is the wet end portion of a 2 HP Executive 2-1/2″ suction, 56Y frame spa pump. This is basically a pump without a motor.
This wet end is used with a 2 HP, 56Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The wet end may be rotated 90 degrees to change the discharge position.
The inlet is standard 2-1/2″ buttress and outlet is standard 2″ buttress threads. See below for exact dimensions. This has a center inlet and side discharge.
Features:
- Electrical: Used with 2 Horsepower motors
- Plumbing: 2-1/2″ Buttress External Threads – Inlet (Approximately 3-11/16″ actual outside diameter), 2″ Buttress External Threads – Outlet (Approximately 3-1/16″ actual outside diameter)
- Motor Type: 56Y Frame Thru Bolt
