Description

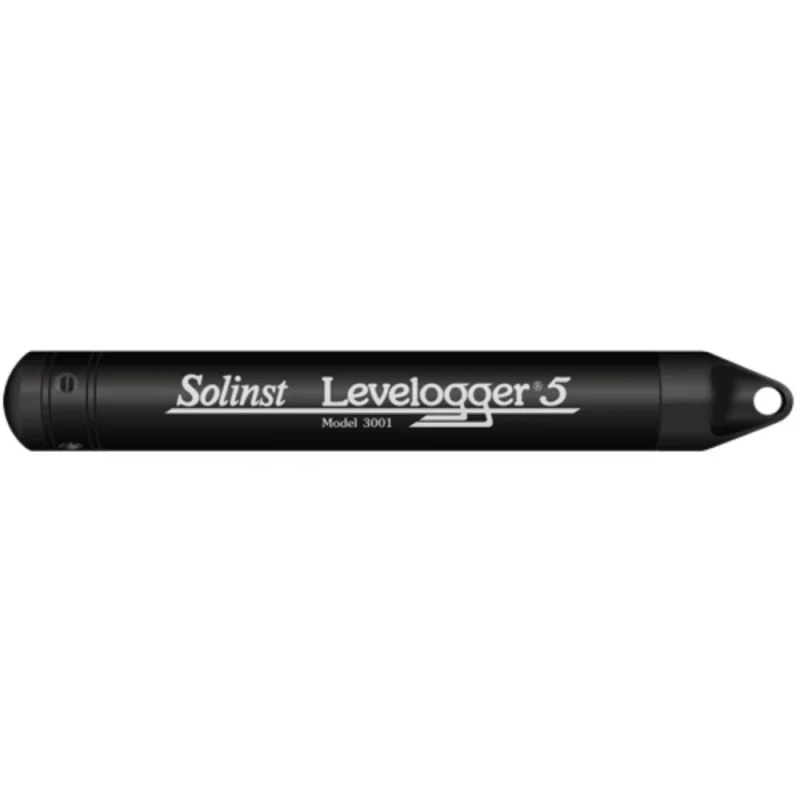

Solinst Levelogger 5 Model 3001 Level Dataloggers (15 to 600 Feet)
The Levelogger 5 level logger records highly accurate groundwater and surface water level and temperature measurements. It combines a pressure sensor, temperature detector, 10-year lithium battery, and datalogger, sealed within a 22 mm x 160 mm (7/8″ x 6.3″) stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology.
The Levelogger 5 measures absolute pressure using a Hastelloy pressure sensor, offering high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments.
The Levelogger 5 level logger uses a Faraday cage design, which protects against power surges or electrical spikes caused by lightning. Its durable maintenance-free design, high accuracy and stability, make the Levelogger 5 the most reliable instrument for long-term, continuous water level recording.
Upgraded Features
- Increased stability for communication: single-eye optical interfaceeasier to clean, more scratch resistant
- Increased memory: 150,000 sets of data
- Stronger, more robust design: double o-ring seals for increased leakage protection
- Better thermistor sensitivity: upgraded platinum RTD
- Superior protection in harsh environments: corrosion and abrasion resistant coatinginside and out
- Enhanced Levelogger Software: improved Diagnostic Utility for more proactive user self-tests
What You Can Expect
- Accurate and reliable temperature compensated water level data
- New optical communication interface with improved datalogger connectivity
- Durable double sealed construction using high-grade 316 stainless steel with PFAS Free corrosion-resistant coating
- Optimized high-speed optical communication interface with backwards compatible adaptors to work with 3rd and 4th generation Leveloggers
- Increased memory capacity and faster thermal response times
Forward & Backward Compatibility
- Adaptors connect new Leveloggers to your existing direct read cables and accessories
- Want to connect a previous model Levelogger to a new Solinst accessory? We have an adaptor for that too.
| Level Sensor: | Piezoresistive Silicon with Hastelloy Sensor |
| Accuracy: | 0.05% FS (Barologger 5: 0.05 kPa) |
| Stability of Readings: | Superior, low noise |
| Resolution: | 0.002% FS to 0.0006% FS |
| Units of Measure: | m, cm, ft., psi, kPa, bar, C. F (Barologger 5: psi, kPa, mbar, C, F) |
| Normalization: | Automatic Temperature Compensation |
| Temp. Comp. Range: | 0 to 50C (Barologger 5: -10 to +50C) |
| Temperature Sensor: | Platinum Resistance Temperature Detector (RTD) |
| Temp. Sensor Accuracy: | 0.05C |
| Temp. Sensor Resolution: | 0.003C |
| Battery Life: | 10 Years – based on 1 reading/minute |
| Clock Accuracy: | 1 minute/year (-20C to 80C) |
| Operating Temperature: | -20C to 80C |
| Maximum Readings: | 150,000 sets of readings |
| Memory Mode: | Slate and Continuous |
| Communication: | Optical high-speed: USB, SDI-12 57,600 bps with USB |
| Size: | 22 mm x 160 mm (7/8″ x 6.3″) |
| Weight: | 166 grams (5.9 oz) |
| Corrosion Resistance: | Baked-on coating using polymerization technology (inside and out) |
| Other Wetted Materials: | Delrin, Viton, 316L stainless steel, Hastelloy, PFAS-free PTFE coating |
| Sampling Modes: | Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View |
| Measurement Rates: | 1/8 sec to 99 hrs |
| Barometric Compensation: | Software Wizard and one Barologger 5 in local area (approx. 30 km/20 miles radius) |
