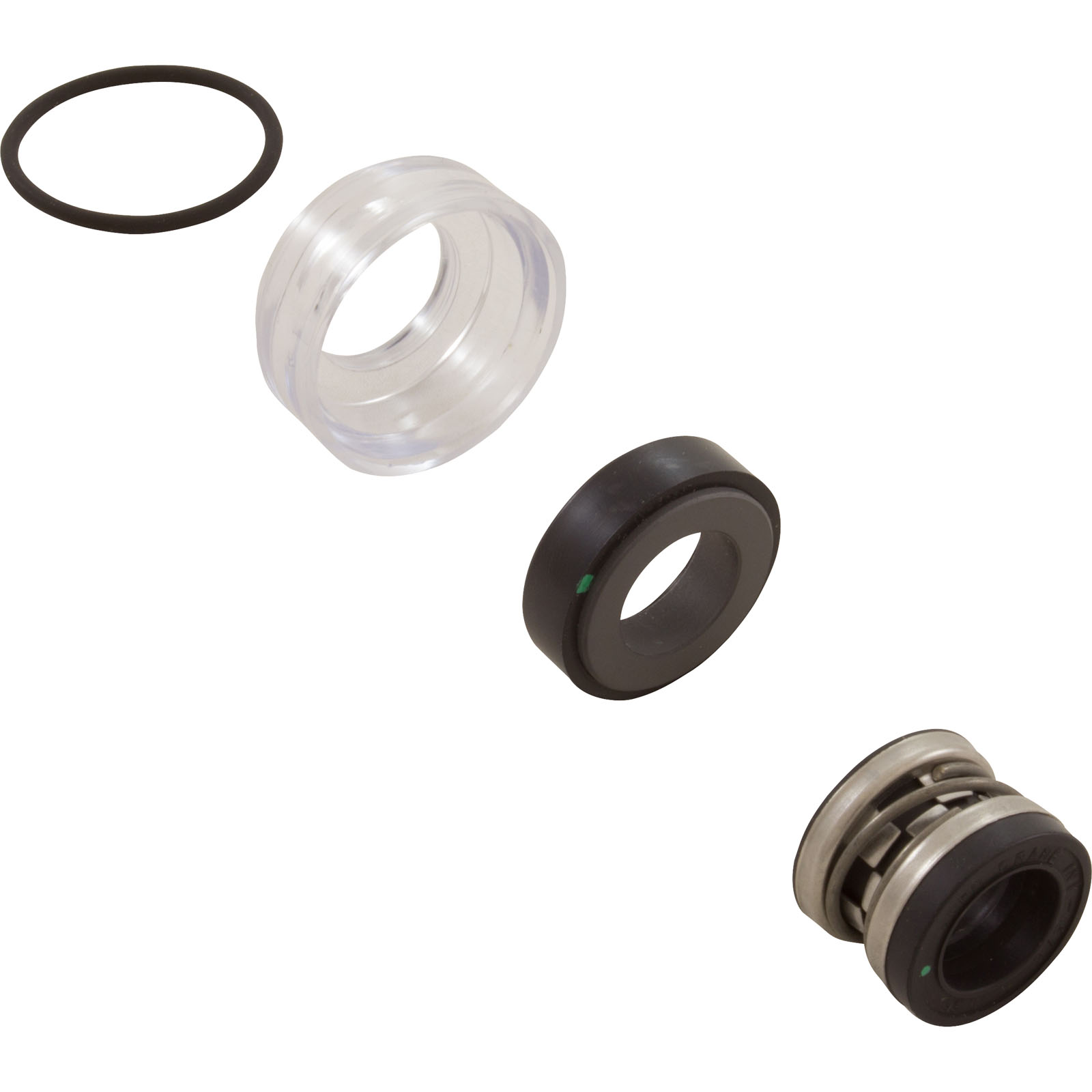

5/8″ Silicon Carbide Shaft Seal | Model PS-1906
Product Overview
As a retailer of hot tub spare parts, I supply this advanced PS-1906 shaft seal featuring superior silicon carbide faces for 5/8″ applications. This seal represents a high-performance upgrade from the PS-2131 series, engineered for exceptional durability in demanding environments.
Key Features and Benefits
- Silicon carbide face technology
- Precision 5/8″ shaft design
- PS-2131 series upgrade
- Enhanced wear resistance
- Advanced thermal handling
- Superior pressure capability
- Professional-grade engineering
Technical Specifications
| Specification | Detail |
|---|---|
| Model | PS-1906 |
| Series | PS-2131 Upgrade |
| Shaft Size | 5/8 inch |
| Face Material | Silicon Carbide |
| Secondary Face | Silicon Carbide |
| Spring Material | 316 Stainless Steel |
| Maximum Temperature | 255°F (124°C) |
| Maximum Pressure | 250 PSI |
| Rotation | Bi-directional |
| Design Type | High Performance |
Installation and Maintenance
Professional installation is essential due to the specialized nature of silicon carbide components. The seal faces require precise handling during installation to prevent damage. Both sealing surfaces must be perfectly clean and accurately aligned for optimal performance.
Compatibility
Engineered for use with:
- 5/8″ shaft pumps
- High-performance systems
- Demanding applications
- Professional installations
- Continuous duty operations
Performance Features
Designed to deliver:
- Superior wear resistance
- Enhanced heat management
- Maximum durability
- Precise sealing force
- Extended service life
- Professional reliability
Note: Always verify seal compatibility with your specific pump model before installation
