Description

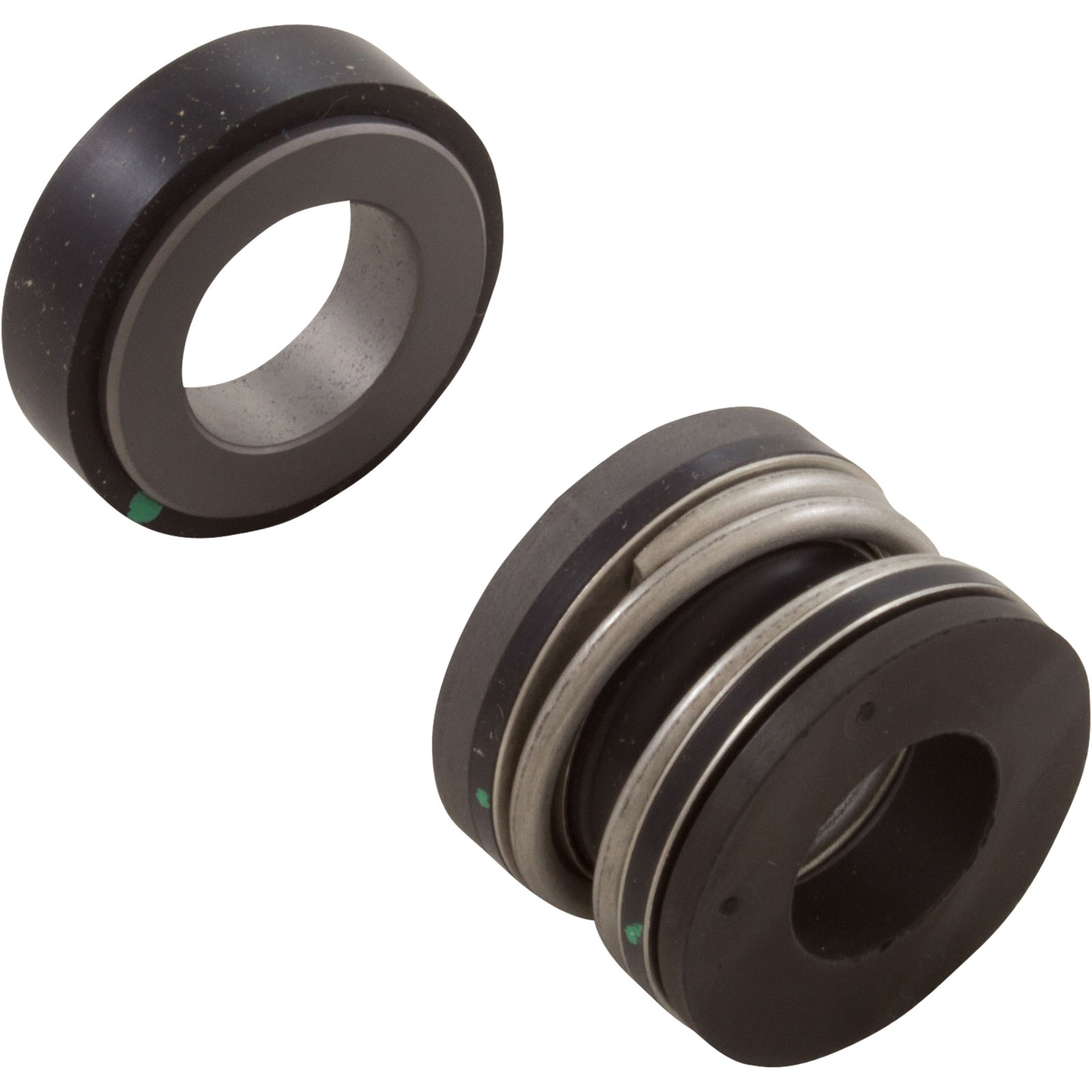

5/8″ Silicon Carbide Shaft Seal | Model PS-1903
Product Overview
As a retailer of hot tub spare parts, I supply this premium PS-1903 shaft seal featuring high-performance silicon carbide faces for 5/8″ applications. This advanced seal represents a significant upgrade from the standard PS-501 series, delivering superior durability and wear characteristics.
Key Features and Benefits
- Silicon carbide face technology
- Precision 5/8″ shaft design
- PS-501 series upgrade
- Ultra-high wear resistance
- Advanced heat dissipation
- Maximum pressure handling
- Professional-grade build
Technical Specifications
| Specification | Detail |
|---|---|
| Model | PS-1903 |
| Series | PS-501 Upgrade |
| Shaft Size | 5/8 inch |
| Face Material | Silicon Carbide |
| Secondary Face | Silicon Carbide |
| Spring Material | 316 Stainless Steel |
| Maximum Temperature | 250°F (121°C) |
| Maximum Pressure | 200 PSI |
| Rotation | Bi-directional |
| Design Type | Heavy Duty |
Installation and Maintenance
Professional installation is essential due to the specialized nature of silicon carbide components. The seal faces require careful handling during installation to prevent damage. Both sealing surfaces must be perfectly clean and properly aligned for optimal performance.
Compatibility
Engineered for use with:
- 5/8″ shaft pumps
- High-performance systems
- Industrial applications
- Heavy-duty operations
Performance Features
Designed to deliver:
- Maximum wear resistance
- Superior heat handling
- Enhanced durability
- Consistent sealing force
- Extended service life
- Premium performance
Note: Always verify seal compatibility with your specific pump model before installation
