Description

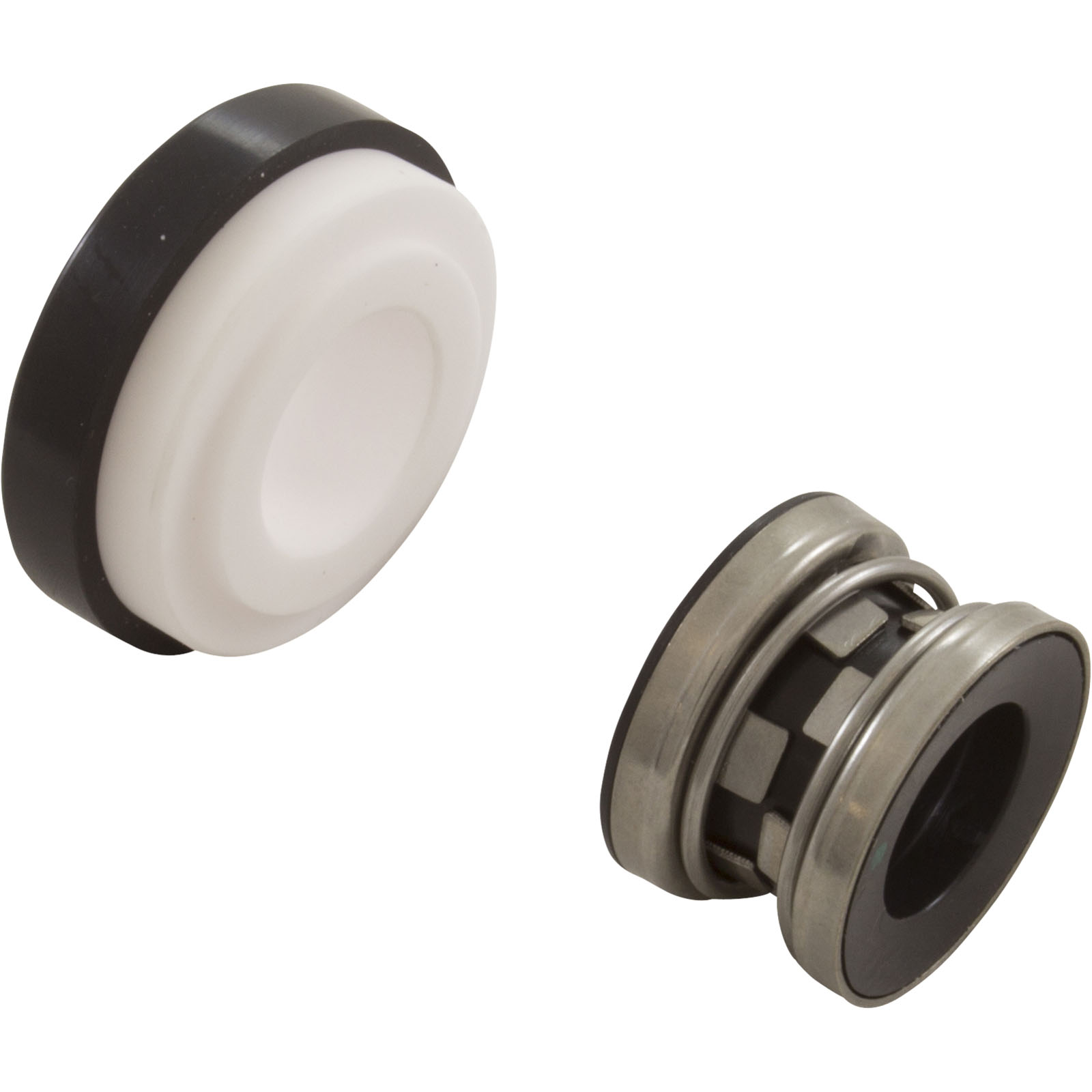

5/8″ Viton Shaft Seal Model 200 | Part 200V
Product Overview
As a retailer of hot tub spare parts, I supply this specialized Model 200 mechanical seal featuring premium Viton construction for 5/8″ pump shafts. This seal is engineered for superior chemical resistance and high-temperature applications where standard Buna seals may not be suitable.
Key Features and Benefits
- High-grade Viton elastomer construction
- Precision 5/8″ shaft design
- Advanced chemical resistance
- Superior heat tolerance
- Professional-grade assembly
- Extended durability design
- Ozone and UV resistant
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 200V |
| Shaft Size | 5/8 inch |
| Elastomer Material | Viton |
| Face Materials | Carbon/Ceramic |
| Spring Material | 316 Stainless Steel |
| Maximum Temperature | 400°F (204°C) |
| Maximum Pressure | 135 PSI |
| Rotation | Bi-directional |
| Chemical Resistance | Superior |
| Application | Medium Duty |
Installation and Maintenance
Professional installation is recommended to maximize seal performance. The ceramic seat requires careful handling during installation, and both sealing faces must be kept pristine. Proper shaft preparation and alignment are essential for optimal seal life.
Compatibility
Designed for use with:
- 5/8″ pump shafts
- Chemical-resistant applications
- High-temperature systems
- Saltwater environments
- Ozone-treated systems
Performance Features
Engineered to provide:
- Exceptional chemical compatibility
- High temperature resistance
- Enhanced longevity
- Stable sealing force
- Superior wear resistance
- Reliable operation
Note: Always verify shaft dimensions and seal compatibility with your specific pump model before installation
