Description

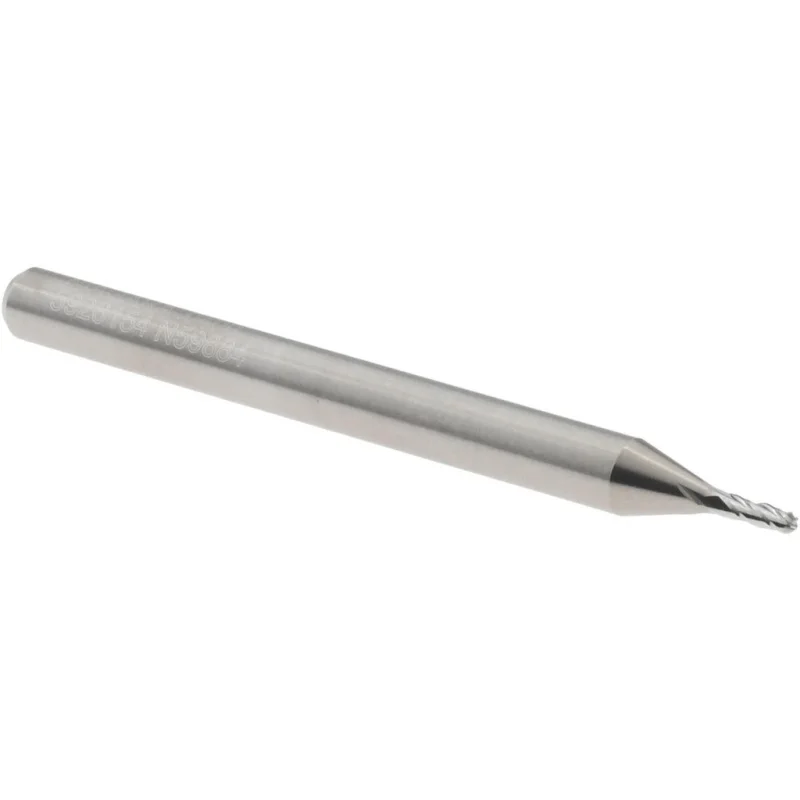

The SECO 17002701 is a solid carbide ball end mill designed for precision milling of steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium. Part of the MEB430 series, it features a 0.0400-inch cutting diameter, a 0.0200-inch nose radius, and a 4-flute spiral geometry with a 30-degree medium helix angle. The submicron carbide grade provides the hardness and wear resistance needed for both roughing and finishing operations in demanding CNC machining environments. The bright, uncoated finish suits applications where coating buildup clearance is not required. Machinists and tool-and-die professionals working on small-feature contouring and profiling rely on tools in this size range.
This end mill is suited for small-feature 3D contouring, slot milling, and die/mold work where tight tolerances and fine surface finish are required. The 0.1200-inch reach length and 0.0400-inch neck diameter make it appropriate for applications requiring controlled depth engagement on miniature or precision components. It is a single-end, right-hand cut tool with a right-hand flute direction and a straight-cylindrical shank, fitting standard 1/8-inch collets and tool holders. Extended reach and coolant-through features are not included in this configuration.
Key Features
- 0.0400-inch ball end cutting diameter with 0.0200-inch nose radius for fine-feature profiling
- 4-flute spiral geometry with 30-degree medium helix for balanced chip evacuation and surface finish
- Submicron solid carbide grade for high hardness and edge retention across multiple workpiece materials
- Right-hand cut and right-hand flute direction; single-end configuration
- Bright/uncoated finish suitable for non-ferrous metals and applications where coating is not required
- Rated for roughing and finishing in steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium (ISO material codes P, M, K, N, S)
Compatibility
Fits standard 1/8-inch straight-cylindrical collets and tool holders. Part of the SECO MEB430 series; manufacturer catalog number MEB430-0.040-F3-B.0-Z4. Designed for use on CNC machining centers performing small-feature milling operations across the listed workpiece material groups.
Installation Notes
Installation should be performed by a qualified machinist or CNC setup technician. Secure the straight-cylindrical shank fully within the collet or tool holder to the recommended grip length before tightening. Verify runout does not exceed the specified TIR maximum of 0.0050 inches after installation. At this diameter, tool deflection and runout are critical factors confirm holder condition and collet cleanliness before each setup.
Technical Specifications
- Mill Diameter: 0.0400 inches
- Nose Radius: 0.0200 inches
- Number of Flutes: 4
- Helix Angle: 30 degrees
- Reach Length: 0.1200 inches
- Neck Diameter: 0.0400 inches
- Shank Diameter: 0.1250 inches (1/8 inch)
- Overall Length: 1.5000 inches
- End Mill Material: Solid Carbide, Submicron Grade
- Flute Type: Spiral
- Shank Type: Straight-Cylindrical
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- End Configuration: Single End
- Coating/Finish: Bright/Uncoated
- Material Removal Type: Roughing and Finishing
- Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys and Titanium
- Mill Diameter Tolerance: +0.0000 / -0.0020 inches
- Overall Length Tolerance: +0.0600 / -0.0600 inches
- Shank Diameter Tolerance: -0.0001 / -0.0004 inches
- TIR Maximum: 0.0050 inches
- Series: MEB430
- Weight: 0.01 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 17002701
