Description

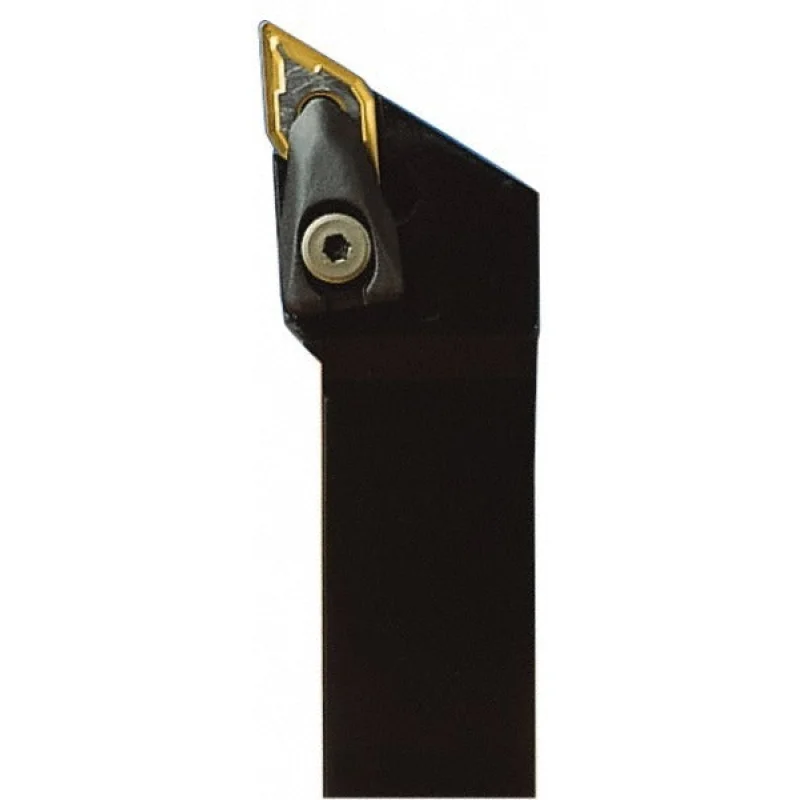

The SECO 02565488 is a right-hand DDJN-style indexable turning toolholder designed for external turning operations on CNC lathes and turning centers. Built from steel and featuring a clamp-lock insert holding method, this toolholder accepts DN..33.. series inserts with a 3/8-inch inscribed circle and operates at a negative rake angle of -6 degrees. The 0.75-inch square shank and 4.5-inch overall length make it a standard fit for production and job-shop turning setups. A 93-degree lead angle positions the cutting edge for general-purpose turning across a wide range of workpiece materials. Installation and operation are handled by qualified CNC machinists and turning specialists.
This toolholder is suited for right-hand external turning applications on both production and job-shop lathes. It carries a universal primary workpiece material rating, covering material codes H, K, M, N, P, and S, meaning it handles steel, stainless, cast iron, non-ferrous alloys, superalloys, and general-purpose materials. Compatible inserts include DNGA, DNGM, DNGP, DNMA, DNMG, DNMP, and DNMX geometries in the DN..33.. family, giving shops flexibility in insert selection for finishing, semi-finishing, and general turning passes. The toolholder does not include coolant-through capability.
Key Features
- DDJN toolholder style with right-hand cutting direction and 93-degree lead angle
- Negative rake angle of -6 degrees for increased edge strength on harder workpiece materials
- Clamp-lock insert holding method for secure, repeatable insert indexing
- Accepts DN..33.. inserts including DNGA, DNGM, DNGP, DNMA, DNMG, DNMP, and DNMX geometries
- Universal material compatibility covering H, K, M, N, P, and S material codes
- Steel toolholder construction for rigidity and durability in continuous turning operations
Compatibility
Designed to accept DN..33.. series indexable inserts including DNGA, DNGM, DNGP, DNMA, DNMG, DNMP, and DNMX with a 3/8-inch inscribed circle. Fits standard 0.75-inch square shank tool blocks and turrets on CNC lathes configured for right-hand external turning.
Installation Notes
This toolholder is installed and serviced by qualified CNC machinists or toolroom personnel. Ensure the machine spindle is fully stopped and the turret is locked or de-energized before changing inserts or mounting the holder. Secure the shank fully into the turret block to the specified clamping depth and verify insert seating before resuming cuts. Follow machine manufacturer guidelines and applicable shop safety procedures when setting tool offsets and confirming cutting geometry.
Technical Specifications
- Toolholder Style: DDJN
- Hand of Holder: Right Hand
- Cutting Direction: Right Hand
- Rake: Negative
- Rake Angle: -6 degrees
- Lead Angle: 93 degrees
- Shank Width: 0.75 inches
- Shank Height: 0.75 inches
- Overall Length: 4.5 inches
- Head Length: 1.18 inches
- Back of Bar to Cutting Edge: 1 inch
- Insert Inscribed Circle: 0.375 inches
- Compatible Insert Size Code: DN33
- Complete Insert Compatibility: DN..33.., DNGA, DNGM, DNGP, DNMA, DNMG, DNMP, DNMX
- Insert Holding Method: Clamp Lock
- Coolant Through: No
- Toolholder Material: Steel
- Primary Workpiece Material: Universal (H, K, M, N, P, S)
- Cutting Tool Application: Turning
- Weight: 0.7 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02565488
