Description

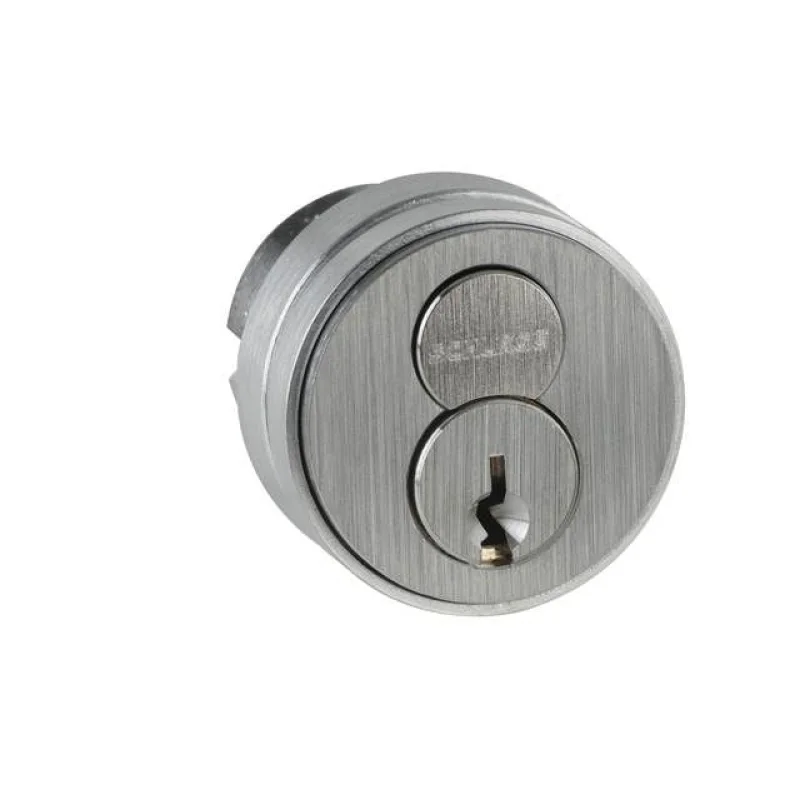

The SCHLAGE COMMERCIAL 20061E626 is a large format interchangeable core (LFIC) mortise cylinder designed for commercial and institutional door hardware applications. Finished in satin chrome, this cylinder accepts an E keyway and ships pre-bitted with one key. The assembly includes a compression ring, spring, and a 3/8-inch blocking ring with a straight cam, providing a complete drop-in replacement for standard mortise cylinder pockets. It is installed by licensed locksmiths and commercial door hardware technicians working in new construction or retrofit projects where LFIC systems are specified.
This mortise cylinder is suited for commercial, institutional, and multi-family building applications where large format interchangeable core systems are in use. The straight cam configuration makes it compatible with standard mortise locksets that require direct cam actuation. The satin chrome finish coordinates with common 626 or US26D hardware finishes found throughout commercial facilities. Facilities managers and security integrators specify LFIC cylinders like this one to allow rapid core exchange without removing the cylinder from the door.
Key Features
- Large format interchangeable core design allows core removal and replacement without disassembling the lockset
- E keyway configuration for keying compatibility within E-keyway master key systems
- Ships with one bitted key, compression ring, spring, and 3/8-inch blocking ring
- Straight cam actuation for direct compatibility with standard mortise lockset tailpieces
- Satin chrome (626 / US26D) finish for corrosion resistance and aesthetic coordination
- Sold as a single unit (EA), ready for immediate installation
Compatibility
Designed as an OEM-style replacement mortise cylinder for commercial mortise locksets that accept large format interchangeable cores with a straight cam configuration.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Before servicing any lockset, verify the door is in a safe and operable position and follow the facility access control procedures before removing any functioning cylinder. LFIC cores require a control key for insertion and removal do not attempt to force the core. Consult local building codes and the Americans with Disabilities Act hardware requirements when specifying hardware for egress or accessible route doors.
Technical Specifications
- Core Format: Large Format Interchangeable Core (LFIC)
- Cylinder Type: Mortise Cylinder
- Keyway: E Keyway
- Cam Style: Straight Cam
- Blocking Ring: 3/8 inches
- Included Hardware: Compression ring, spring, 3/8-inch blocking ring
- Finish: Satin Chrome (626 / US26D)
- Length: 3.6 inches
- Width: 2.2 inches
- Height: 1.6 inches
- Weight: 0.6 pounds
- Sold As: Each (EA)
Standard Information
- Brand: SCHLAGE COMMERCIAL
- Manufacturer Part Number: 20061E626
