Description
When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

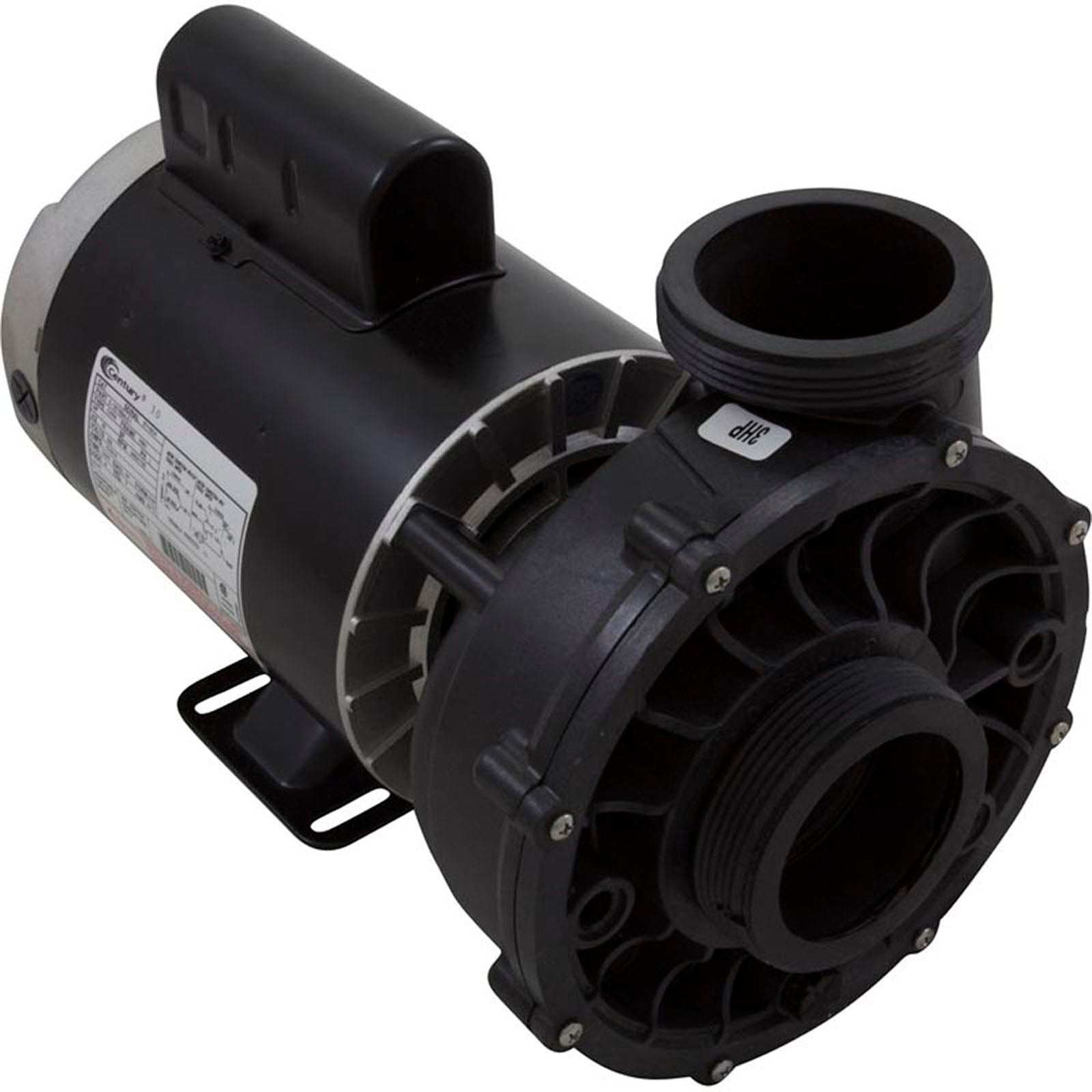

The Viper has a dual speed motor with four sets of insulated windings for increased efficiency, and a 2-1/2 intake and discharge
Spa Pump Features:
- Viper wet end designed specifically for 56-frame motors.
- Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life.
- Two speed motors have four sets of insulated windings for increased efficiency.
- 56-frame motor for added strength, cooler operating temperature, and longer motor life.
- Large 2-1/2″ intake for improved flow performance and reduced noise.
- Large 8″ diameter wet end for increased volume capacity.
- Split capacitor, (start and run) for less energy consumption.
- Thermally protected to extend life expectancy of motor.
- Highly versatile wet end can be rotated every 90 degrees.
- Dimensions (H x W x L): 9.08″ x 8.05″ x 15.72″
- California Title 20 Compliant
Attention: Motors and Pumps with Horizon numbers ending with W or N carry a 1 year warranty from date of manufacture.
Product Specifications:
