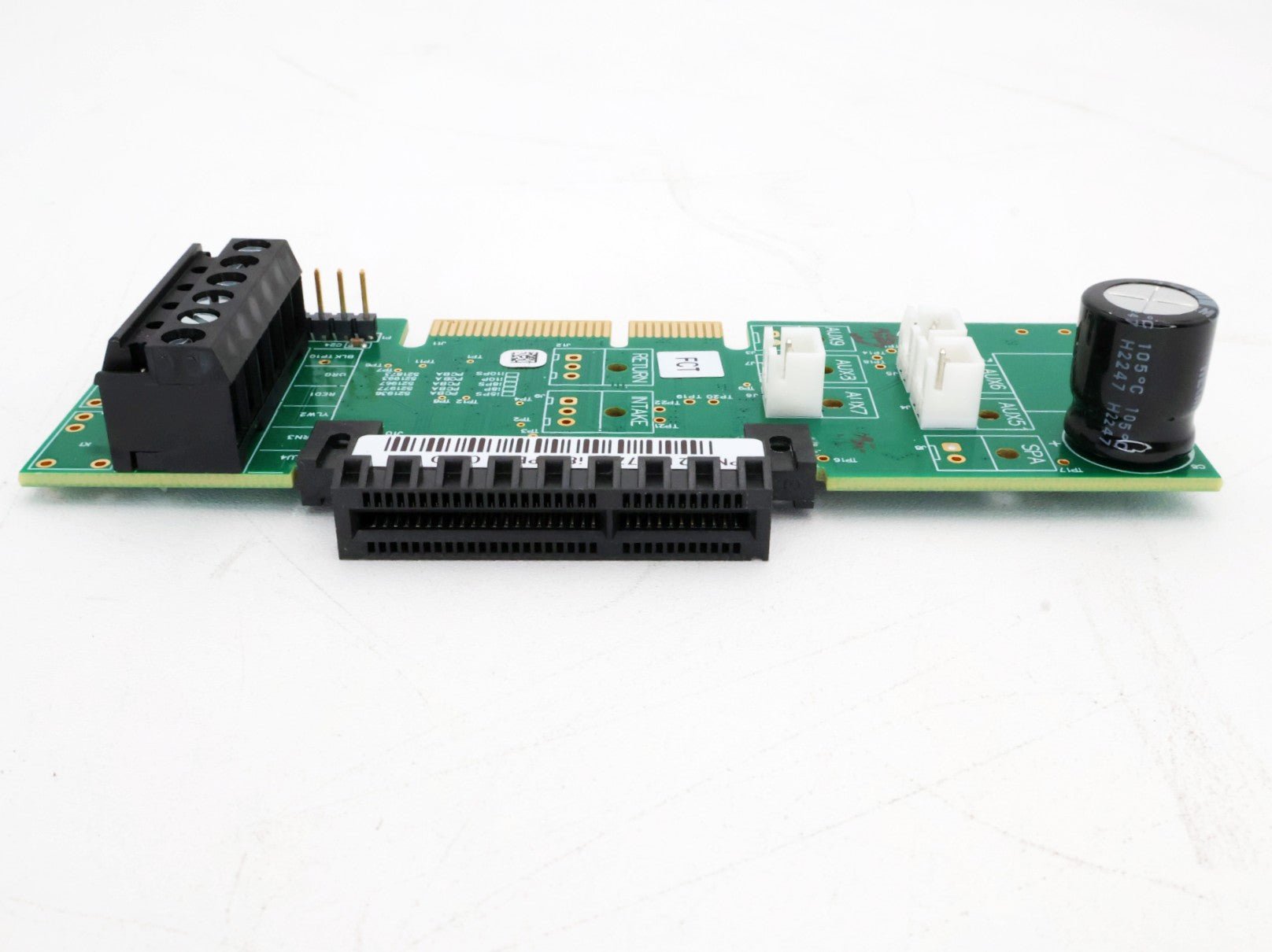

Pentair IntelliCenter i8P Personality Card Circuit Board | 521977Z
The Pentair IntelliCenter i8P Personality Card Circuit Board (521977Z) is the brain of your Pentair IntelliCenter i8P Pool Control System. This replacement PCBA (printed circuit board assembly) with integrated personality control logic manages equipment sequencing, schedules, and automation logic for pumps, heaters, lights, valves, and other pool/spa components when installed in your IntelliCenter i8P panel.
What This Part Is For
This personality card is specifically designed for the Pentair IntelliCenter i8P series automation control system. It replaces the original control board if it becomes damaged, fails, or shows erratic behavior — helping restore full automation control without replacing the entire power center assembly.
Features & Benefits
- OEM-style replacement personality card for IntelliCenter i8P systems
- Controls automation logic for pumps, lights, heaters, and accessories
- Restores scheduling, sequencing, and system logic functions
- Designed for long-lasting performance in Pentair automation panels
Installation Notes
- Turn off power to the automation panel before servicing
- Remove the faulty personality board and label any disconnected cables
- Install the replacement board and reconnect wiring per original routing
- Restore power and test scheduled operations and equipment functions
Maintenance Tips
- Inspect wiring and connections periodically for secure fit and corrosion
- Keep the panel enclosure dry and free of debris
- Update firmware/software when available to maintain performance and compatibility
