Description

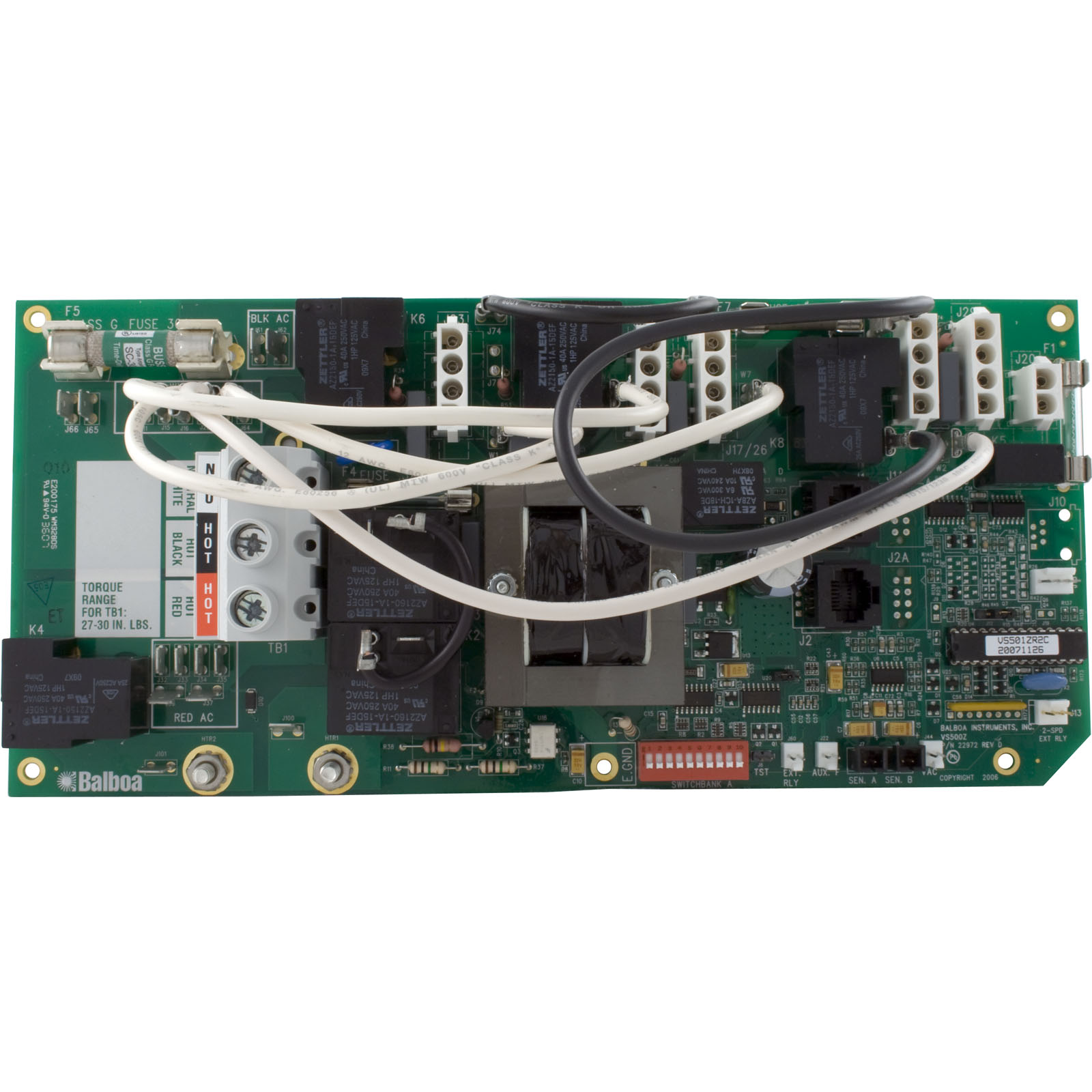

Balboa circuit boards are marked with a “Chip Number” that is located on a white label placed on the logic chip near the center of the board. It is imperative that this number is supplied to Horizon Spa & Pool Parts for proper circuit board match.Just because boards may look similar the programming may not allow it to work properly in all applications. Please review our Balboa Chip Cross Reference below.
Compatible topsides are:58-138-1142 – Panel, Lite Duplex Digital LCD58-138-1143 – Panel, Lite Duplex Digital LCD w/o Blower58-138-1144 – Panel, Lite Duplex Digital LED58-138-1145 – Panel, Lite Duplex Digital LED, No Blower58-138-1146 – Panel, Duplex Digital LCD58-138-1147 – Panel, Duplex Digital, (1-Jet, No-Blwr)58-138-1148 – Panel, Duplex Digital (1-Jet, 1-Blwr)58-138-1149 – Panel, Duplex Digital (2-Jet, No-Blwr) 58-138-1165 – Panel, Duplex Mini Oval LCD)58-355-4113 – Panel, HQ Eco 200
Setup for Balboa VS501Z to run as a VS500Z with any rectangular topside medium or large, VL600 3 or 4 button, VL260 3 or 4 Button
To run as 3 button topside Pump/Light/1 Temp Button
Dip Switch Settings
1
OFF
2
OFF
3
OFF
4
OFF
5
OFF
6
OFF
7
OFF
8
OFF
9
OFF
10
ON
To run as Rectangular topside 4 button Jet/Light/Temp Down/Temp Up
Dip Switch Settings
1
OFF
2
OFF
3
OFF
4
OFF
5
OFF
6
OFF
7
ON
8
OFF
9
OFF
10
ON
Mini Oval topside setups Eco 200
To run as Mini Oval topside 3 buttons on topside Pump/Light/Temp
Dip Switch Settings
1
OFF
2
OFF
3
ON
4
OFF
5
ON
6
OFF
7
OFF
8
OFF
9
OFF
10
ON
Mini Oval 4 buttons Jet/Light/Temp Down/Temp Up
Dip Switch Settings
1
OFF
2
OFF
3
ON
4
OFF
5
ON
6
OFF
7
ON
8
OFF
9
OFF
10
ON
Attention:
Please check chip number before making a selection. Part numbers 59-138-1682 and 59-138-1683 have similar chip numbers INF107R* (The number “1” 59-138-1683) or INFI07R* (The letter “I” 59-138-1682)
