Product Description

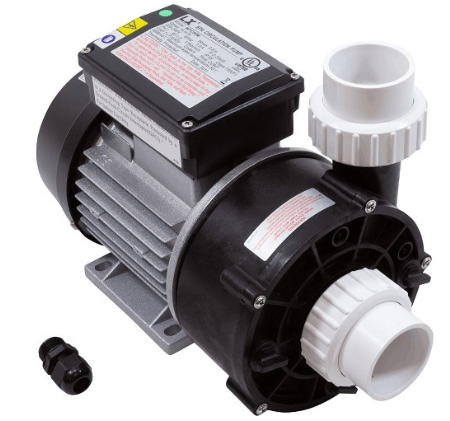

The LX WTC50M-S is a compact 230V circulation pump built specifically for hot tub applications. Operating continuously at 1700 RPM, it delivers a steady 60 GPM flow rate—sufficient to support standard hot tub circulation & heating systems. This pump is equipped with 1.5″ intake & discharge with long threads. This pump is engineered for circulation duties only and lacks the power needed to operate spa jets. Ideal for 24/7 operation in hot tub environments.
LX Item Number: WTC50M-L (Alternatively WTC50M-USA)
Quick Specs
- Intake: 1.5″ (Measures 2 3/8″ across) – Long Threads
- Discharge: 1.5″ (Measures 2 3/8″ across) – Long Threads
- Horsepower: NA
- Frame: NA
- Volts: 230V 60 Hz
- High Speed Amps: 1 amp (1700 RPM)
- Low Speed Amps: NA
- Power cord not included
- Unions are included
- Warranty: 1 Year (manufacturing defects)
Important Details
This pump is compatible with Sundance / Jacuzzi part number 6500-907 manufactured after July 11, 2011, as the thread length matches. Please verify your original part number before purchase to ensure proper fit.
When replacing a Sundance / Jacuzzi 6500-907 pump manufactured after July 11, 2011, select the WTC50M-USA as your replacement option.
For older Sundance / Jacuzzi 6500-907 units manufactured before July 11, 2011, part number 48WTC0153C-I is the compatible replacement pump you need.
