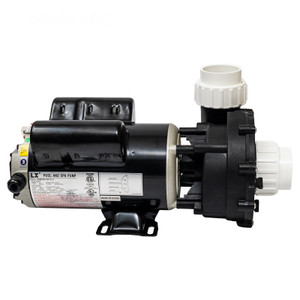

Pump 48WUA1501C-II LX 1.5HP 2 SPD 115V 13.8A / 3.8A 48 FR 2
The Pump LX 1.5HP 2 SPD 115V 13.8A / 3.8A 48 FR 2, 48WUA1501C-II is a 2-speed spa pump designed for pool and spa applications. Features: Horsepower: 1.5 HP
- Voltage: 115V
- Motor Amperage/Wattage: 13.8A / 3.8A
- Frame Size: 48 Frame
- Pipe Size: 2″ Male Buttress Thread (MBT) for both suction and discharge
- Speeds: Dual-speed operation (high and low)
- Flow Rate: 155 GPM (Gallons Per Minute)
- Capacitors: Start Capacitor (50uf 300v), Run Capacitor (40uf 450v)
- Dimensions: 16″ L x 8-7/16″ W x 8-7/16″ H
Plumbing and Use Case
The pump features a 2″ male buttress thread (MBT) inlet and side discharge ports, with both suction and discharge sized for 2″ unions, making it a direct fit for most modern spa plumbing. It’s commonly used as a replacement for 1.5 HP Aqua Flo XP2e 115V 48‑frame pumps and other spa pumps requiring a dual‑speed, center‑suction, side‑discharge configuration.
Design Features
This LX WUA series pump is engineered as a two‑speed spa pump that provides high speed for massage jets and low speed for filtration and circulation cycles. It uses a mechanical shaft seal for watertight operation and is recognized and widely accepted by spa manufacturers for long‑term, low‑noise performance.
