Description

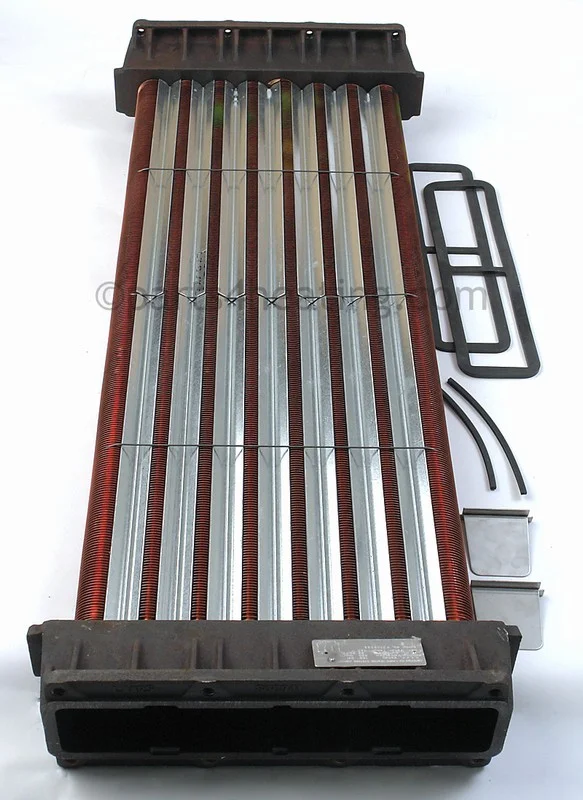

Teledyne Laars BR534703 CopperHeat Exchanger, 8 Tube Assembly, 715
Used on the following models:
HH0715, HH715, HH-715, PH0715, PH715, PH-715, VW0715, VW715, VW-715, PW0715,
PW715, PW-715, IW0715, IW715, IW-715, AP0715, AP715, AP-715, MT0715, MT715,
MT-715, B40715, B4715, B4-715. ,tube bundle
Technical Specification
Mighty Therm, Tube Assembly, Indoor Boiler (8 Tubes), 715, Laars Code Compliant ASME Tube Assemblies, Built in accordance w/the requirements of the ASME Boiler and Pressure Vessel Code, Copper tubes and glass-lined tubs, ideal for hydronic or other closed loop, low oxygen content systems. Performs well w/normal water (7.5 to 17 grains hardness) in volume water applications. Length 44.5” Width 16” Height 5.5”
