Description
Powerful and Compact Low-Flow Heater Replacement for Saratoga Spas
Product Overview

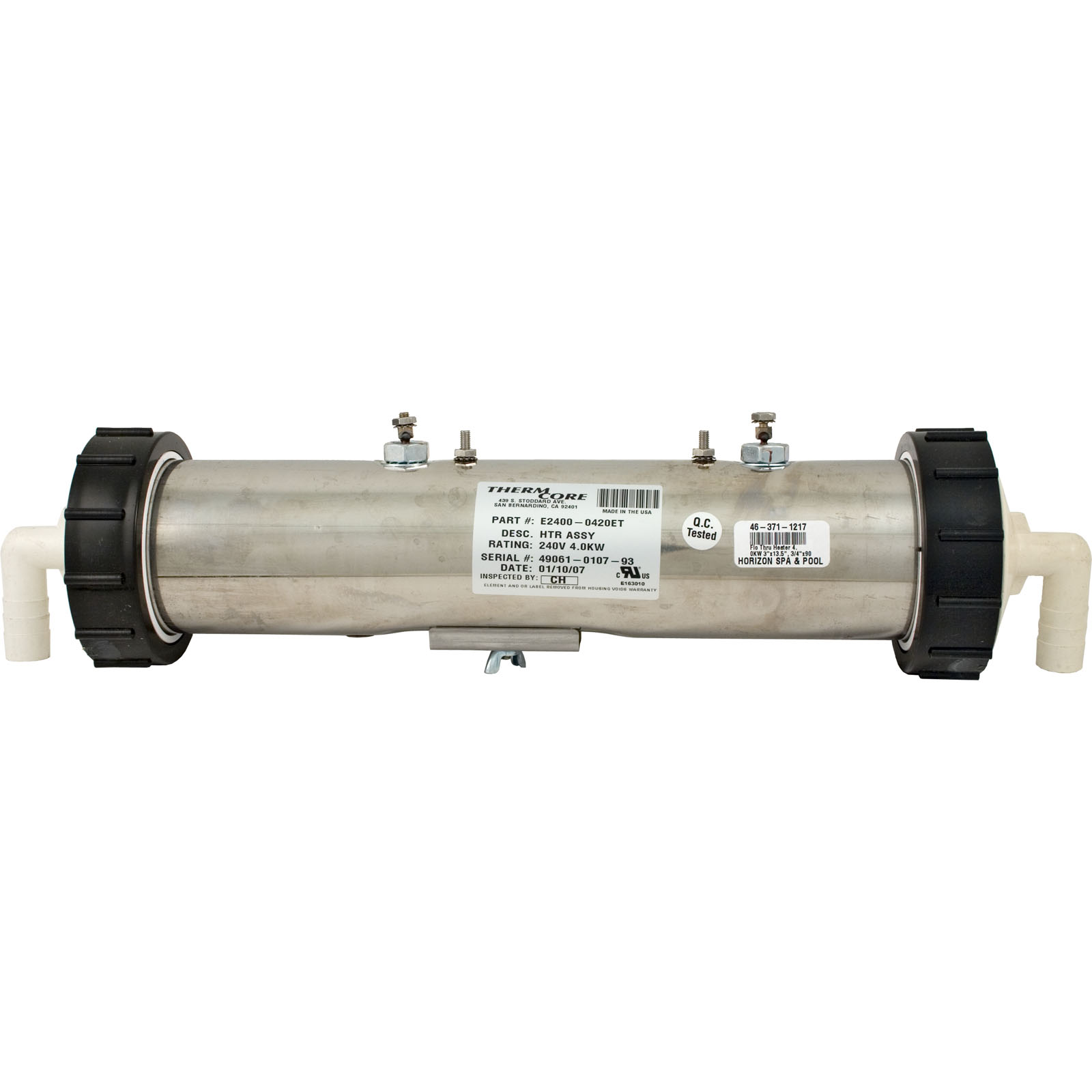

The Saratoga Replacement Low-Flow Heater, model E2400-0420ET, is a high-performance heating solution designed for Saratoga Spas. This 4kW, 230V heater features a compact 13-1/2″ x 3″ profile with 90-degree barb tailpieces and a pressure switch tap, providing a flexible replacement option for your spa.
Detailed Specifications
- Voltage: 230V
- Wattage: 4kW
- Dimensions: 13-1/2″ x 3″
- Inlet/Outlet: 3/4″ 90-degree barb tailpieces
- Includes: 1/8″ NPT pressure switch tap
- Mounting: 2 x 10-32 x 3/8″ studs
- Coil Element Size: 6″ on center from terminal to terminal
- Compatibility: Saratoga Spas
- Warranty: Manufacturer’s warranty
Powerful Heating Capacity
The Saratoga Replacement Low-Flow Heater delivers 4kW of heating power, providing efficient and effective warming for your spa. Its compact design makes it an ideal replacement for Saratoga systems.
Integrated Pressure Switch Tap
The included 1/8″ NPT pressure switch tap allows you to easily integrate a pressure switch (sold separately) for safe and reliable heater operation, ensuring the system only runs when proper water flow is detected.
Versatile Installation
The 3/4″ 90-degree barb tailpieces and 10-32 x 3/8″ mounting studs simplify the installation process, enabling a straightforward replacement of your existing Saratoga low-flow heater.
Durable Construction
Crafted with high-quality stainless steel, the Saratoga Replacement Low-Flow Heater is built to withstand the elements and provide long-lasting performance in your spa.
Specifications Table
| Specification | Value |
|---|---|
| Voltage | 230V |
| Wattage | 4kW |
| Dimensions | 13-1/2″ x 3″ |
| Inlet/Outlet | 3/4″ 90-degree barb tailpieces |
| Includes | 1/8″ NPT pressure switch tap |
| Mounting | 2 x 10-32 x 3/8″ studs |
| Coil Element Size | 6″ on center from terminal to terminal |
| Compatibility | Saratoga Spas |
| Warranty | Manufacturer’s warranty |
Upgrade your Saratoga Spa with the powerful and compact Saratoga Replacement Low-Flow Heater, model E2400-0420ET. Experience reliable heating performance in your backyard oasis
