Description

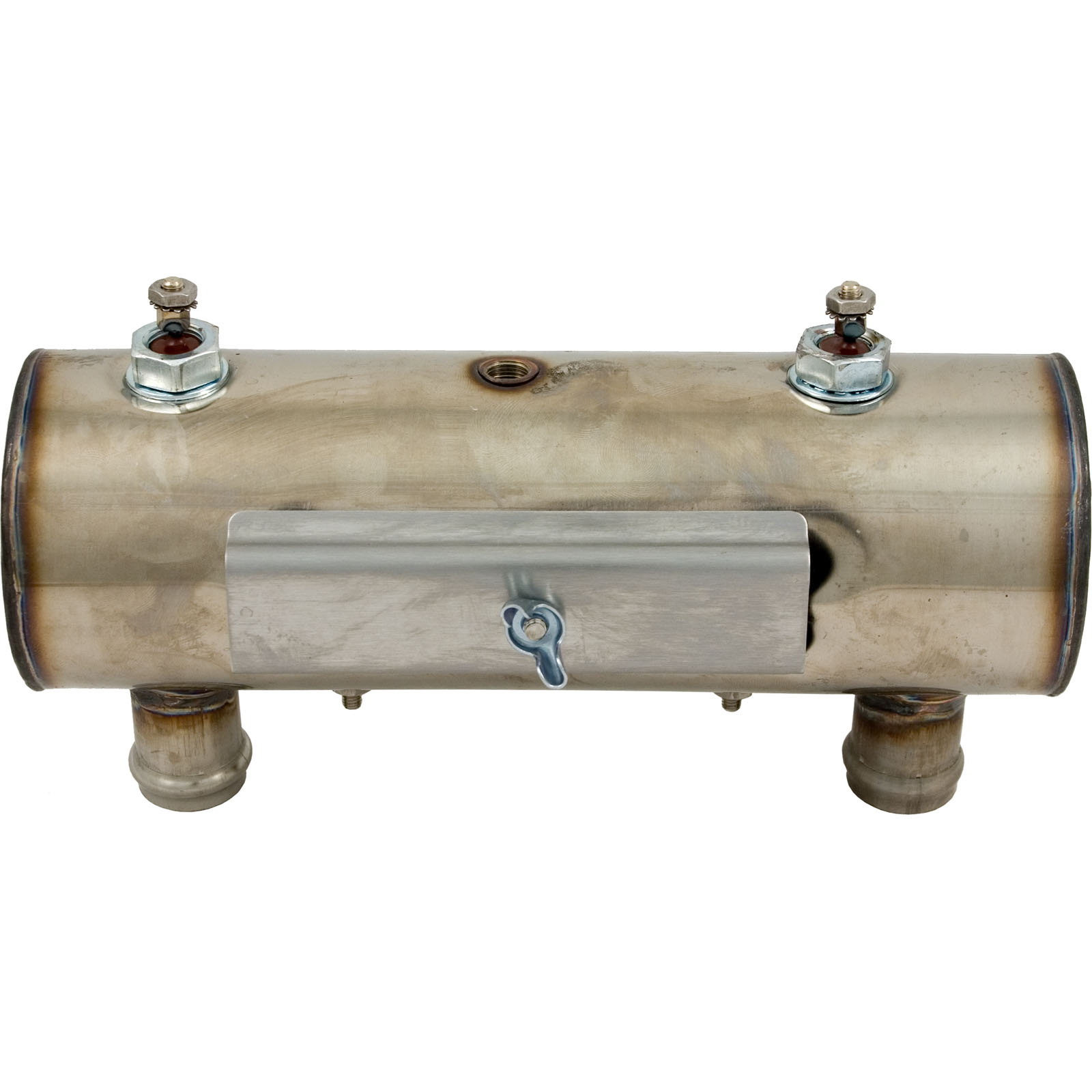

Hurricane Low Flow Replacement Heater 5.5kW
Model: E2550-020X-1
Product Overview
As a retailer of hot tub spare parts, I’m featuring this specialized vertical low-flow replacement heater designed for Hurricane spa systems. This 5.5kW unit features precise dimensions and integrated pressure monitoring capabilities.
Key Features
- Professional-grade 5.5kW heating element
- Vertical housing design
- 1″ barb connections
- Pressure switch tap
- 230V operation
- Specific dimensions
- Custom flow design
- NPT monitoring port
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | E2550-020X-1 |
| Power Rating | 5.5kW |
| Voltage | 230V/240V |
| Length | 9 inches |
| Diameter | 3 inches |
| Connection Size | 1″ barb |
| Pressure Tap | 1/8″ NPT |
| Design | Vertical low flow |
| Application | Hurricane spas |
| Tap Location | Between terminals |
Design Advantages
- Precise dimensional specifications
- Integrated pressure monitoring
- Optimized flow characteristics
- Professional mounting design
- Efficient space utilization
Installation Features
- 1″ barb inlet connection
- 1″ barb outlet connection
- 1/8″ NPT pressure switch tap
- Vertical mounting design
- Specific terminal layout
Performance Features
- Optimized for low-flow systems
- Efficient heat transfer design
- Reliable operation
- Professional-grade components
- Complete monitoring capability
System Integration
- Compatible with Hurricane systems
- Pressure monitoring capability
- Specific orientation design
- Vertical installation requirements
- Direct replacement capability
Application Suitability
Specifically designed for:
- Hurricane spa systems
- Similar spa configurations
- Vertical mount requirements
- Pressure monitored systems
- Low-flow applications
Technical Details
- Pressure tap positioned between element terminals
- Vertical orientation required
- Standard NPT threading for monitoring
- Specific dimensional requirements
- Professional installation design
Installation Notes
- Verify dimensional compatibility
- Confirm pressure tap requirements
- Check voltage specifications
- Ensure proper flow direction
- Consider space requirements
Note: Verify pressure switch compatibility with 1/8″ NPT tap
