Description

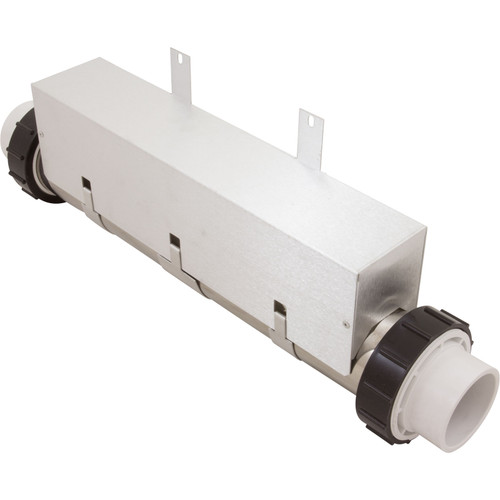

Heater Assembly Leisure Bay17-1/2″ x 3″ 230 volt, 4.0kW 26-1001-5S-K or 26-1001-58-K.
This replacement heater for Leisure Bay hot tubs also replaces E2400-1001 Therm heaters as well as Balboa 58042.
Stainless steel, 17-1/2″ x 3″ 4.0kW/230v replacement heat exchanger. Made for use exclusively on Leisure Bay hot tubs. The original heater may have used a redundant hi-limit, if that is the case when replacing with this heater simply protect the wire connections from the original hi-limit and do not use. The heating element on this assembly is not replaceable. Pressure switch not included – if needed see 3029.
Heater specifications
| Housing Configuration | Straight |
| Heater Length | 15″ |
| Threaded Tap Orientation | 12 O`Clock |
| Kilowatts | 1.0kW, 4.0kW |
| Voltage | 115v, 230v |
| Sensor Stud Orientation | None |
| Mounting Stud Type | None |
| Heater Size | 2″ |
| Heater Application | Leisure Bay |
Also replaces 303019 , 306088 , 58042 , 9145-001 , E2400-1001 , F2400-1001 , F24001001.
