Description

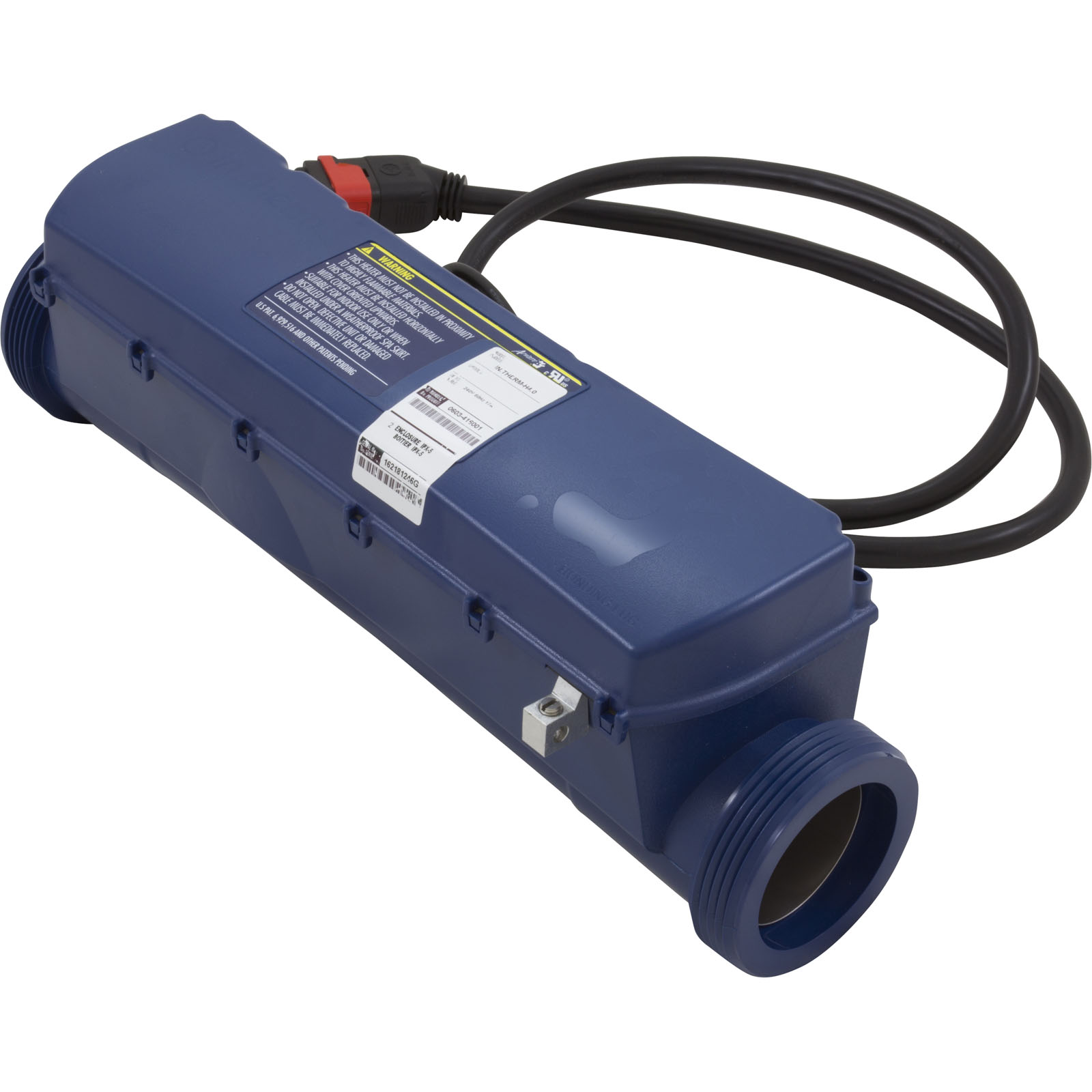

Gecko in.therm Intelligent Spa Heater 4.0kW – in.xm Series
Model: 0603-416001
Product Overview
As a retailer of hot tub spare parts, I’m featuring the innovative Gecko in.therm intelligent remote water heating system. This advanced 4.0kW heater represents the cutting edge of spa heating technology, designed specifically for the in.xm control series with maintenance-free operation.
Key Features
- Intelligent power management system
- Built-in temperature probe
- Advanced water flow detection
- No pressure switch required
- Integrated electronics power box
- Dynamic power level control
- 48″ power cord
- 48″ communication cable
- Zero moving parts design
Advanced Technology
The in.therm system introduces sophisticated heating control that automatically adjusts power levels, extending element life by using high power only when necessary. The integrated flow detection technology eliminates traditional pressure switch requirements, significantly reducing potential failure points.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | 0603-416001 |
| Series | in.therm |
| Control System | in.xm compatible |
| Power Rating | 4.0kW |
| Voltage | 230V |
| Length | 14-1/2 inches |
| Diameter | 2 inches |
| Power Cable Length | 48 inches |
| Communication Cable | 48 inches |
| Minimum Flow Rate | 18 GPM |
| Control Pack Code | IN.XM-1-8-IR-PA-1 |
Installation Requirements
- Access box must be positioned on top
- Minimum water flow rate of 18 GPM required
- Designed for remote installation from pack
- Compatible with in.xm control systems
System Integration
The heater seamlessly integrates with Gecko’s in.xm control systems, providing intelligent temperature management and automated operation. The built-in electronics eliminate the need for external control components.
Innovative Features
- Smart power modulation system
- Integrated flow detection
- Self-diagnostic capabilities
- Maintenance-free design
- No mechanical adjustments needed
- Complete electronic control
Design Technology
The elimination of moving parts and mechanical adjustments represents a significant advance in reliability and longevity. The system’s intelligent power management extends heating element life while maintaining optimal performance.
Note: Color of plastic components may vary between blue and red based on manufacturing batch
