Description

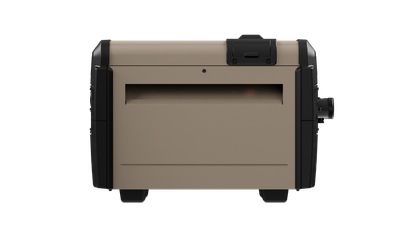

Hayward Universal H-Series W3HS250FDN Above-Ground Natural Gas Heater with OmniX 250K
Features
Universal H-Series pool and spa gas heaters are engineered for easy drop-in replacement, with direct compatibility to Hayward plumbing adapters. At the center is Hayward’s Universal Display, delivering a consistent, intuitive control experience across
Omni®, OmniX®, and competitive automation systems. With OmniX embedded intelligence, the heater provides enhanced programmability, advanced diagnostics, and seamless remote connectivity.
Features and Benefits
- Cupro-nickel heat exchanger offers exceptional protection against corrosion and premature failure caused by unbalanced water chemistry
- Totally managed water flow boasts industry-leading hydraulic performance coupled with lightning-fast speed-to-heat capability
- Universal junction box allows either left and right electrical installation
- Front-panel-only access provides easy service and maintenance, avoiding the problems and costs associated with front-and-back-panel access heaters
- Low NOx emissions meet clean air quality standards
- Backwards Compatible OmniX Retrofit Kits available for existing Universal H-Series gas heaters 2016 or newer with current bezel cutout
| Active Defrost | No |
|---|---|
| Application | New Construction, Renovation |
| Boost Mode | No |
| Brand | Hayward |
| Channel | Open Line |
| Circuit Amps | 5.5 |
| Compressor Speed | N/A |
| Cooling Capability | No |
| Fuel Type | Natural Gas (NA) |
| GTIN | 610377468985 |
| Heating Capacity (BTU/hr) | 250,000 |
| Hertz – Heaters | 60 Hz |
| Kilowatts | 73 kW |
| Warranty – Labor | None |
| Low Ambient Operation | Yes |
| Master Carton Qty | 1 |
| Maximum Breaker Size (Amps) | 15 |
| Pallet Qty | 1 |
| Warranty – Parts | 1-year |
| Phase – Heaters | 1 |
| Pool Type | In Ground |
| Rear Clearance – Heaters | 6″ |
| Refrigerant | No |
| Series Heaters | OmniX |
| Shipping Dimensions | 30.6 ” x 32.8 ” x 33.3 “ |
| Shipping Weight | 170.5 lb |
| Side Clearance – Heaters | 12″ |
| Silent Mode | No |
| Voltage – Heaters | 120/240V |
Resources
- Brochure
