HAYWARD | LATERAL NEW PIVOT STYLE 5” | SX200QN
OPTIMUS4800-30
HAYWARDSX200QN
************************************************

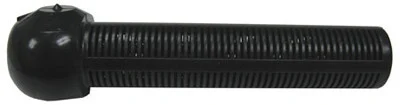

GENERAL DESCRIPTION: PIVOT TYPE LATERAL THIS IS A HAYWARD PIVOT TYPE LATERAL USED ON A NUMBER OF FILTERS.
THERE IS A BALL WITH A LOCKING TAB AT ONE END OF THE LATERAL.
THE BALL FITS INTO THE HUB AND ALLOWS THE LATERAL TO BE SWIVELED UP AND DOWN TO MAKE REPLACING THE STANDPIPE ASSEMBLY A LOT EASIER
. WHEN THE STANDPIPE IS IN PLACE, THE LATERAL IS SWIVELED BACK DOWN TO OPERATING POSITION
************************************************
MATERIAL: VARIOUS COLOR PLASTIC TYPE: SWIVEL PIVOT
************************************************
DIMENSIONS: OUTSIDE DIAMETER 7/8″ (A) DIAMETER OF THE MAIN PART THE BALL IS ABOUT 1-1/4″ x 1-3/8″ THE BALL ADDS 1″ TO THE TOTAL LENGTH OF THE LATERAL
