Description

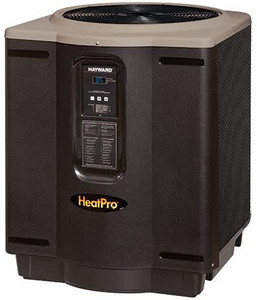

Hayward HeatPro H-Series Digital Heat Pump | 140000 BTU | 230 V | Stainless Steel Housing
The HeatPro is the only round, compact designed heat pump that combines excellent energy efficiency, quiet operation, easy installation and superior value with a standard ultra gold fin evaporator coil for superior coastal corrosion resistance.
Easy To Use
Simple to operate with its dual electronic thermostat and user-friendly controls, the Hayward HeatPro heats up to 140,000 BTU and is great for new or existing pool and spa applications.
Features
- Titanium Heat Exchanger – Excellent salt water and chemical corrosion resistance
- Exclusive ‘Ultra Gold’ Evaporator Coil corrosion resistant especially in coastal areas
- Quiet Operation – quiet backyard environment
- AHRI Certified Performance – Independent lab certified performance ensures value of purchase
- Round Design – Easily fits through gates and takes up less space on equipment pad
- 2in x 2 1/2in CPVC Union Plumbing Connections – Common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
- Lighter Weight – Less than 250 lbs.
Specifications
| Application | In ground pools |
| Brand | Hayward |
| BTU Performance | 140,000 |
| Cabinet Depth | 34 Inch |
| Cabinet Height | 37 Inch |
| Cabinet Width | 44 Inch |
| Coefficient of Performance | 5.7 |
| Control Type | Digital Electric, Dual Thermostat |
| Dimensions | 30.25 W x 34 D x 44 H |
| Flow Rate | 30 to 75 gpm |
| Frequency Rating | 60 Hz |
| Housing Material | Stainless Steel |
| Inputs | 7.2 kW |
| Item Name | Hayward HeatPro(R) In Ground Pool Heat Pump |
| Maximum Overload | 50 |
| Minimum Circuit Amp | 36 A |
| Phase | 1-Phase |
| Refrigerant Model | R410A |
| Shipping Weight | 320 pounds |
| Standards Approvals | AHRI 1160 Performance Test Standard |
| Sub Brand | HeatPro(R) |
| Type | In Ground Pool Heaters |
| Voltage Rating | 240 V |
| Water Connection | 2 Inch x 2.5 Inch Unions |
| Weight | 280 pounds |
Resources
- Operating Manual
- Brochure
- Schematics
Hayward W3HP21404T HeatPro H-Series Digital Heat Pump; 140K BTU, 230 V, Stainless Steel Housing
