Description

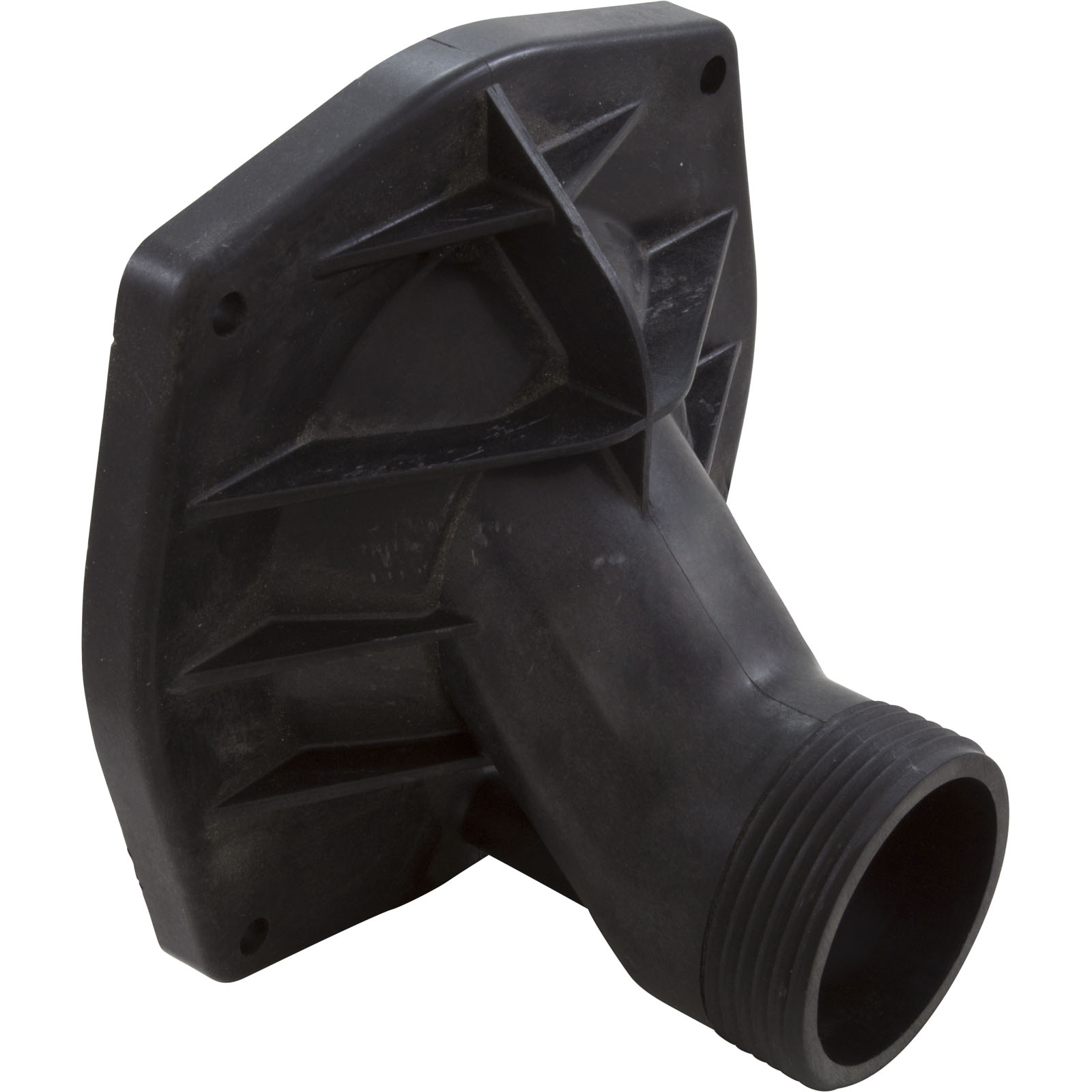

Jacuzzi JCM Faceplate 03-0854-04-R
Product Overview
As a retailer of hot tub spare parts, I’m offering this precision-engineered Jacuzzi faceplate, specifically designed for JCM series pumps with 1-1/2″ connections. This component provides essential sealing and structural support for pump assemblies.
Key Features
- Designed for JCM series pumps
- 1-1/2″ connection size
- Professional-grade construction
- Optimized sealing design
- Precision-molded structure
Technical Details
The 03-0854-04-R faceplate features specialized engineering to ensure proper alignment and sealing in JCM pump applications. The 1-1/2″ connection size provides optimal flow characteristics while maintaining structural integrity and reliable sealing properties.
Compatibility
This faceplate is specifically designed for:
- Jacuzzi JCM series pumps
- 1-1/2″ plumbing systems
- Part number cross-reference: 03-0854-04-R
Installation Notes
Professional installation recommended. Ensure all mating surfaces are clean before installation. Verify proper gasket placement and condition. Use appropriate torque sequence during assembly to prevent warping.
Specifications Table
| Specification | Detail |
|---|---|
| Manufacturer | Jacuzzi |
| Model Line | JCM Series |
| Part Number | 03-0854-04-R |
| Connection Size | 1-1/2 inch |
| Material | High-grade polymer |
| Application | Pump housing assembly |
| Replacement Type | Direct OEM replacement |
| Design Type | JCM specific |
| Construction | Precision-molded |
| Flow Pattern | Standard design |
| Sealing Method | Gasket system |
| Usage | Residential/Commercial |
| Connection Type | Standard 1-1/2″ |
Maintenance Recommendations
Regular inspection of sealing surfaces and mounting points. Check for wear patterns or damage during routine maintenance. Verify gasket integrity before reassembly. Replace if any structural or sealing defects are detected.
