Description

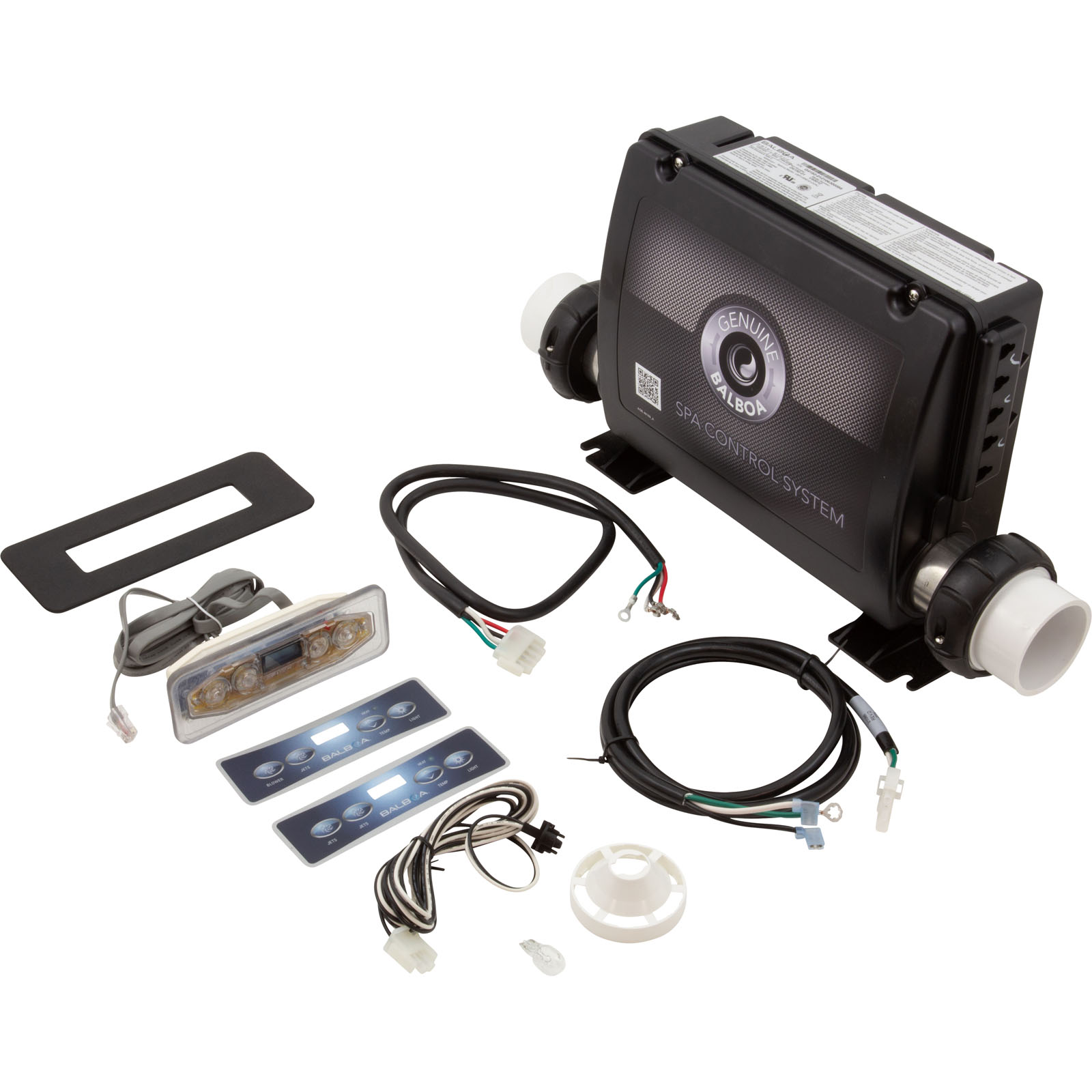

Balboa Water Group VS501Z Control System with 4.0kW Heater and VL401 Panel
Features:
- Controls a two-speed pump and a one-speed pump or blower
- 115/230v Ozone circuit
- 115/230v Circ Pump circuit (30GPM minimum)
- 12v spa light circuit
- Patented M7&8482
technology - Plumb on pressure or vacuum side
- Component cords included
- US & Canadian safety approvals
The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa’s patented M7&8482
temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service.
The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.1/4.0kW heater and can support mini, duplex, or standard digital control panels.
Control Box Dimensions
| Height | Width | Depth |
| 10-9/16″ | 12-1/4″ | 4-1/2″ |
Please note:This system may be set up for 120v power.Please refer to the diagram under the box cover for 240v conversion.
