Description

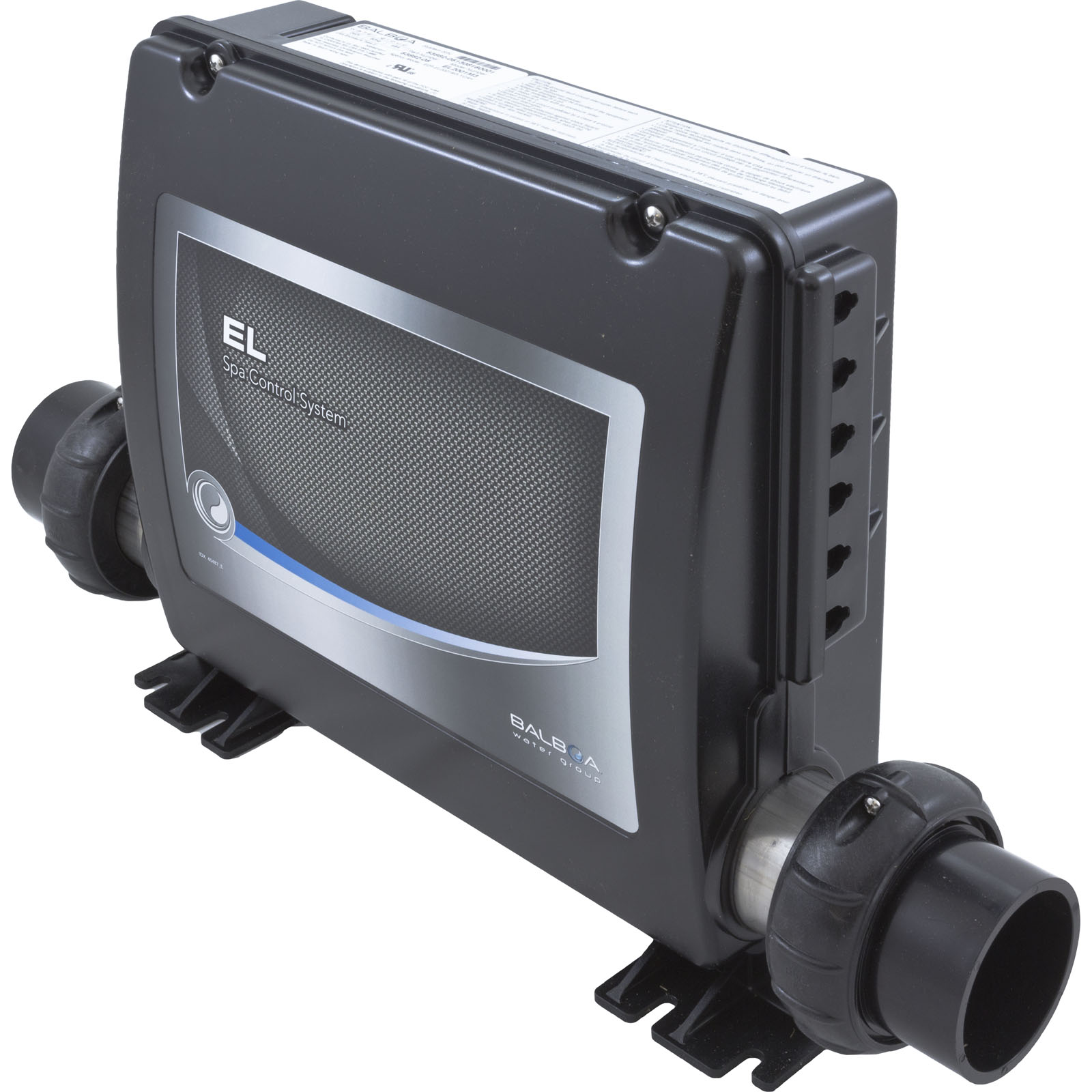

The Elite Series control systems were designed using Balboa’s patented M7&8482
technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control. Innovative features include having output connectors on the board, which eliminates a maze of wires in the enclosure and ultimately reduces assembly time and margin for error. Spaside, cords, light bulb, drywell, and light reflectorsold separately.
Balboa Water Group EL2001M3 Operates:
- 2-speed Pump 1
- 2-speed Pump 2
- 1-speed Blower
- Ozonator
- Circ Pump (30GPM minimum)
- 5.5kW heater
- 12v spa light circuit
- Patented M7&8482
technology (sensors included) - Plumb on pressure or vacuum side
- Component cords sold separately
- Control panel sold separately
- US & Canadian safety approvals
Control Box Dimensions
| Height | Width | Depth |
| 10-9/16″ | 12-1/4″ | 4-1/2″ |
Compatible topside is:58-138-1052 -Panel, Balboa ML900
