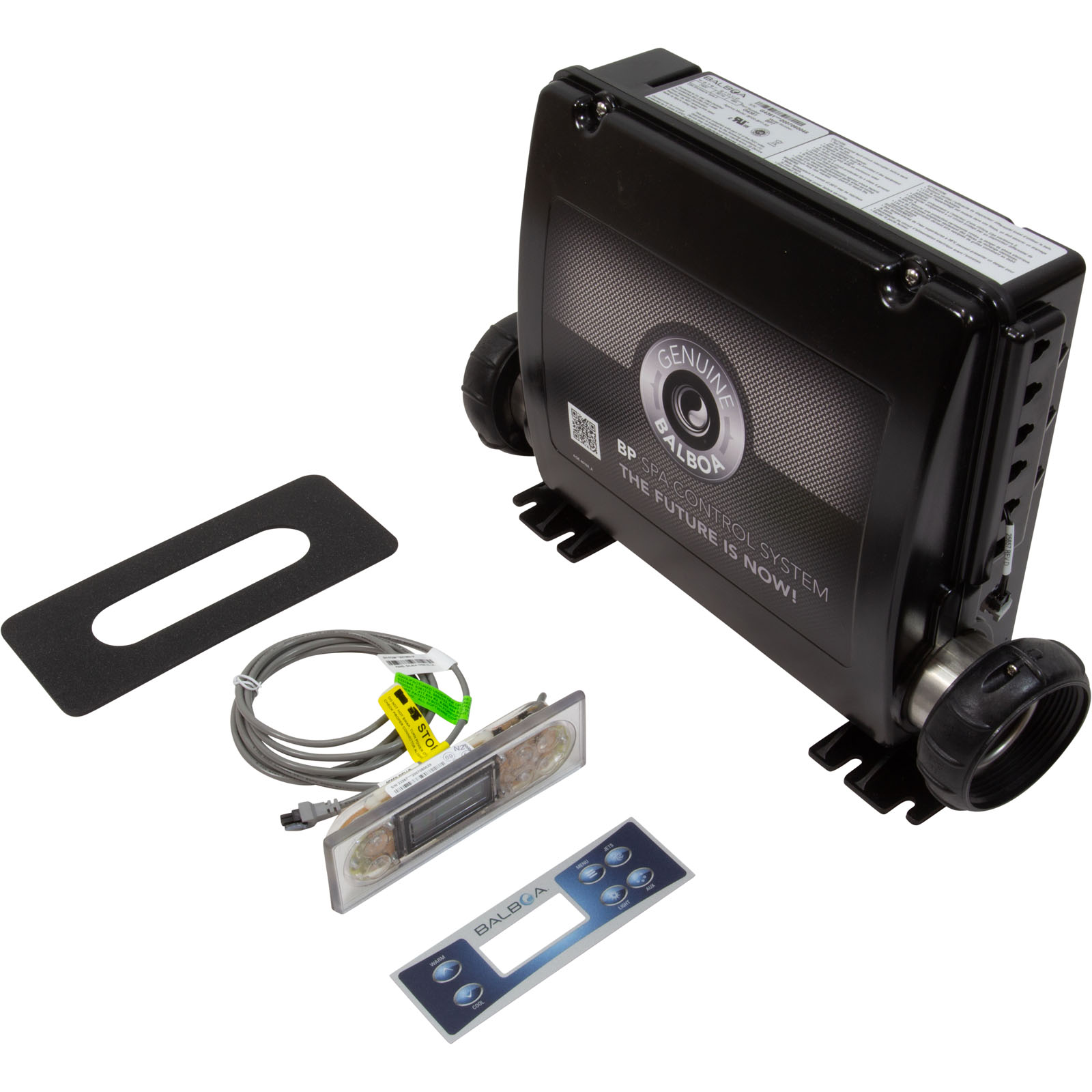

Balboa BP7 Retrofit Control System with TP500 Panel
Complete Control Kit with Smart Integration Capabilities
Product Overview
As a retailer of hot tub spare parts, I’m featuring the Balboa BP7 retrofit kit – a comprehensive control solution that includes the TP500 panel and accessories. This system offers advanced features with smart device integration options.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | BP7 |
| SKU | G6405-01 |
| Default Setup | Setup 21 |
| Frequency Detection | 50/60Hz Automatic |
| Panel Type | TP500 |
| Smart Support | ControlMySpa Compatible |
| WiFi | Supported (via adapter) |
| Ancillary Support | BBA, CZ, Status Pro |
Features:
- Supports all TP and SpaTouch topsides
- Supports all BP ancillary products (ControlMySpa, BBA, CZ and Status Pro)
- Plug-N-Click Heater
- WiFi Support (via adaptor)
-CAN REPLACE ANY BP BALBOA SYSTEM* – While using the existing topside that is already installed on the spa
-CAN REPLACE ANY BALBOA VS OR EL SYSTEM* – When you match it with any TP or SpaTouch™ topside panel
*Both the Circ pump and Ozone can be converted to 120V, however they will be the same voltage after conversion. (Both 120V or both 240V.)
| Balboa BP7 User Guide | |
| Balboa BP Troubleshooting Guide | |
| Andi’s Top Tip – The BP7 is a great replacement spa pack and can replace any VS or EL system. Remember out of the box you may need to configure it to work with the hardware you have – there is a video below to explain this |
*If a 24 hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos or Waterway Tiny Might pumps do not perform at this rate and cannot be used.
