Description

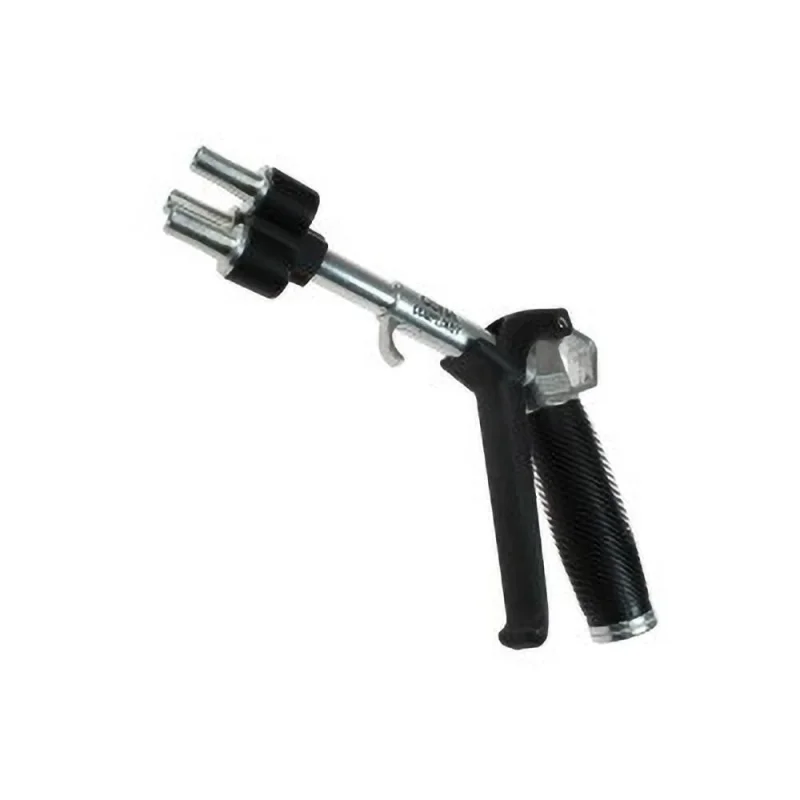

The COILHOSE PNEUMATICS TYP3800MJ-53 is a pistol-grip air blow gun designed for high-volume blowoff tasks in industrial and shop environments. It features a high flow multi-jet nozzle machined from aluminum and accepts a 3/8 NPT inlet connection. The gun delivers 51 standard cubic feet per minute (SCFM) of airflow, making it well-suited for clearing chips, drying parts, and cleaning workstations quickly. A variable trigger allows the operator to modulate airflow for controlled blowoff without releasing and re-gripping. The body and nozzle are both aluminum construction, keeping weight low while holding up to repeated daily use. Licensed service techs, maintenance professionals, and shop personnel across manufacturing, automotive, and industrial trades install and operate this tool.
This blow gun fits standard compressed-air distribution systems with 3/8 NPT fittings and is appropriate for both light-duty shop use and heavier production-line applications. The 2-inch tube length positions the nozzle close to the work surface for targeted airflow. The operating temperature range of -40 degrees F to 140 degrees F makes it functional in cold storage, outdoor, and heated shop environments. The integral hanging hook allows the gun to be stored at the point of use on a hook or bracket near the air supply. OSHA compliance makes it suitable for regulated industrial workplaces where air blowoff equipment must meet pressure and safety standards.
Key Features
- High flow multi-jet nozzle delivers 51 SCFM for fast, efficient blowoff
- Variable trigger provides stepless control over airflow intensity
- Aluminum body and nozzle construction for lightweight durability
- 3/8 NPT inlet fits standard compressed-air distribution fittings
- Integral hanging hook for convenient point-of-use storage
- OSHA compliant rated for regulated industrial work environments
- Operating range of -40 degrees F to 140 degrees F
Compatibility
Designed for use with standard compressed-air systems equipped with 3/8 NPT quick-connect or threaded fittings. Suitable for industrial, automotive, and general shop air distribution lines.
Installation Notes
Installation is performed by maintenance technicians or qualified shop personnel familiar with compressed-air systems. Depressurize and lock out the air supply line before connecting or disconnecting the blow gun. Apply thread sealant tape to the 3/8 NPT male inlet threads before threading into the air supply fitting to prevent leaks. Verify the line pressure does not exceed the rated operating parameters of the gun before returning the system to service.
Technical Specifications
- Body Style: Pistol Grip
- Tip Type: High Flow Multi-Jet Nozzle
- Inlet Size: 3/8 NPT
- Airflow: 51 SCFM
- Decibel Rating: 80 dB
- Tube Length: 2 inches
- Maximum Operating Temperature: 140 degrees F
- Minimum Operating Temperature: -40 degrees F
- Body Material: Aluminum
- Nozzle Material: Aluminum
- Weight: 0.53 pounds
- Standards: OSHA Compliant
Standard Information
- Brand: COILHOSE PNEUMATICS
- Manufacturer Part Number: TYP3800MJ-53
