Description

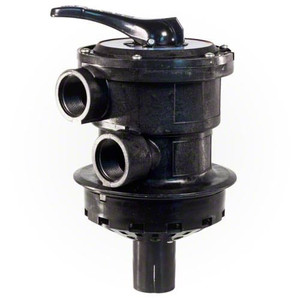

CMP 27515-154-000 Hyrdoseal 714 Top Mount Multiport Valve For Sand Pool Filters; 1-1/2 Inch FPT; Black
Vafi-Flo XL style control valves feature and easy-to-use lever action handle that lets you “dial” up to seven valve. filter functions: filter, backwash, waste, rinse, closed, winter or recirculate. Complete with an integral site glass that lets you see when the backwashing cycles are complete.
Features
- CMP Replacement Filter Vlave
- Vari-Flo XL Style Control Valve
- 7 Valve Positions
- 1-1/2″ FIP Threads
- Clamp Style Closure Design
- Replaces Hayward SP0714T
Specifications
| Application | For Sand Pool Filters |
| Brand | CMP |
| Finish Color | Black |
| Flow Rate | 75 gpm |
| For Use With | Hayward S166T, S180T, S210T, S220T, S244T |
| Item | Multiport Valve |
| Mount | Top Mount |
| Operating Pressure | 50 psi |
| Pipe Size | 1-1/2 Inch FPT |
| Positions | 7 |
| Series | 714 |
| Sub Brand | Hyrdoseal |
Resources
- Brochure
- Operational Manual
