Description

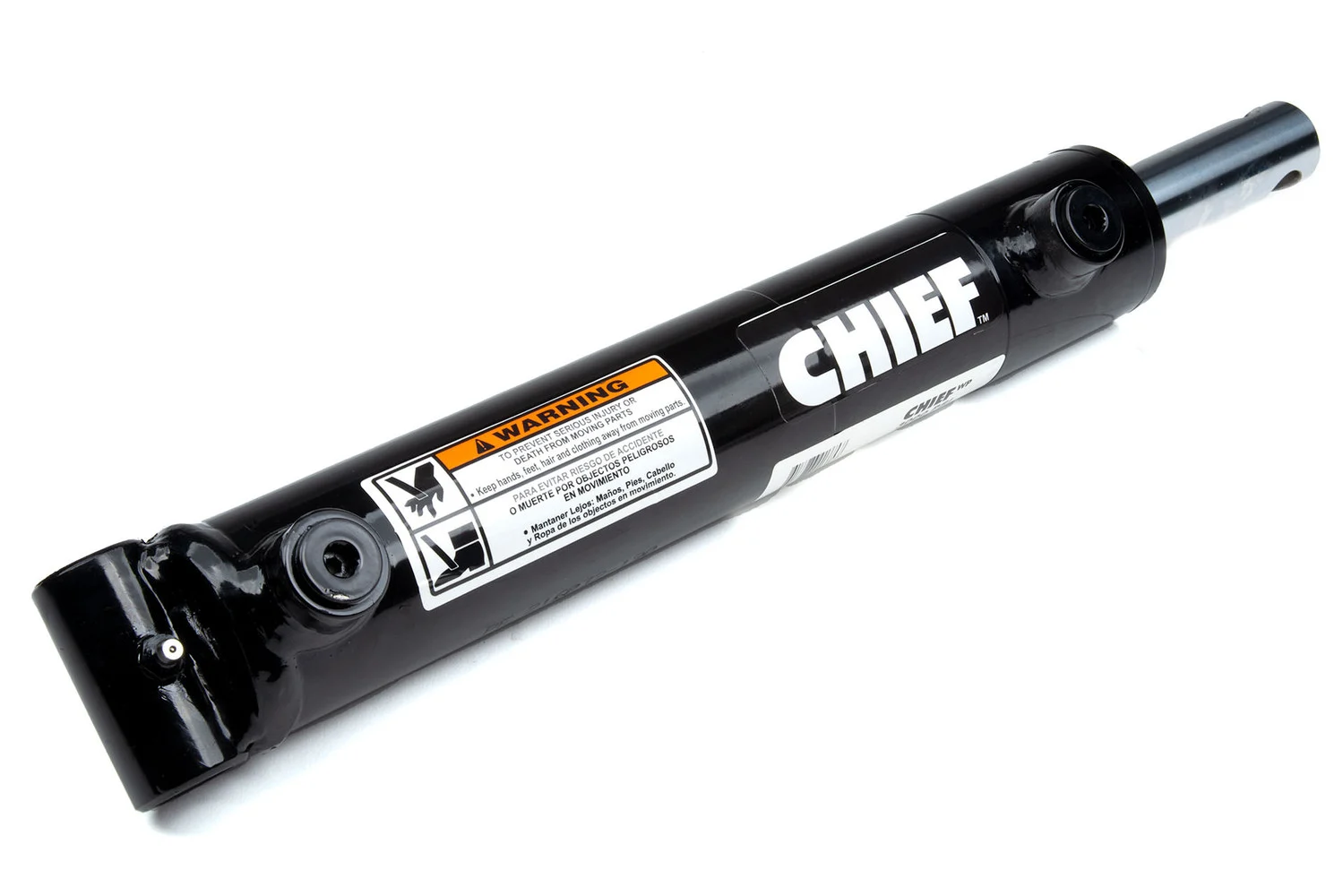

This 3 in bore x 48 in stroke Chief WP Welded Hydraulic Cylinder is a highly versatile medium-duty welded cylinder with a cross-tube base. Every Chief WP cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.
Specifications:
Bore: 3 in
Stroke: 48 in
PSI: 3000
Retracted: 56 in
Pin Diameter: 1 in
Rod Diameter: 1.5 in
Extended: 104 in
Column Load: 5200 lbs
Port Size: SAE 8
Brand: Chief
