Description
Details

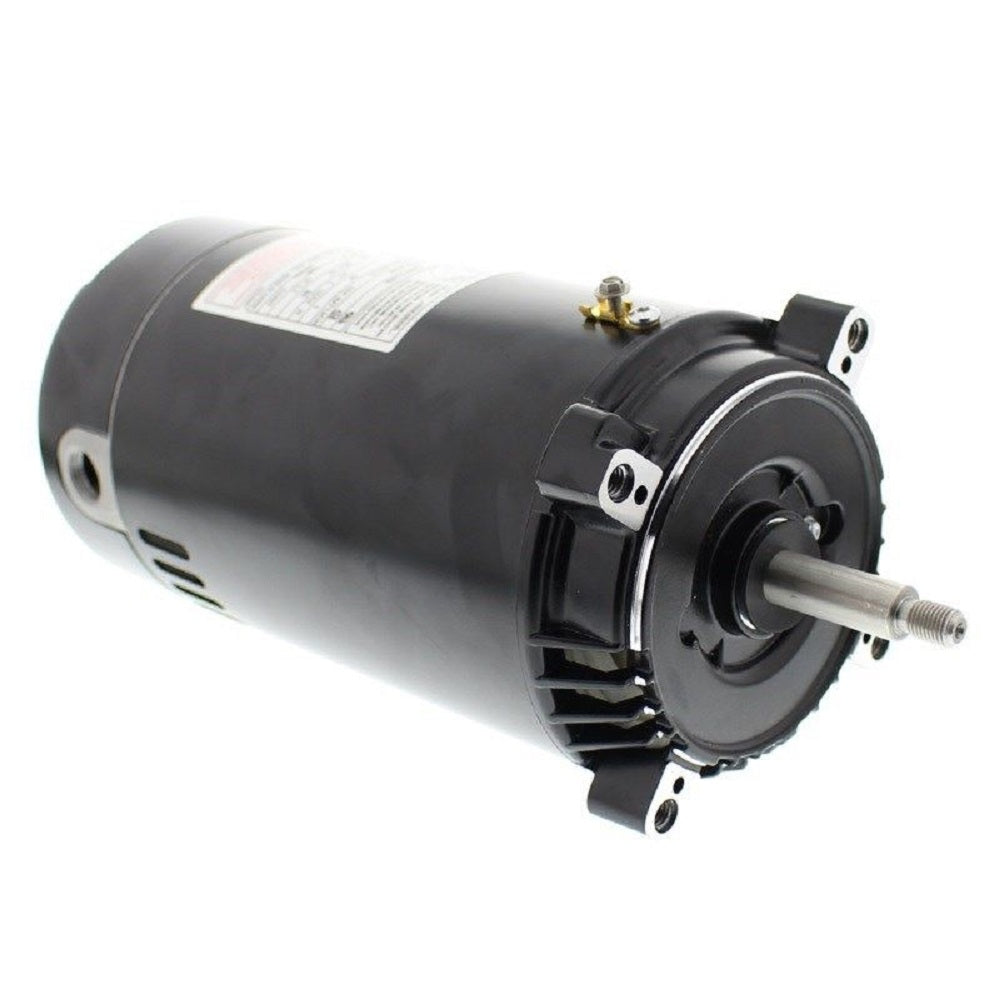

1 HP – C-Face – 56J – 115/230V – Threaded – Up Rate – 1.1 SFTwo Compartment NEMA C-Face Pool Filter Motors – Single SpeedLow Service Factor (UP Rated)
Features:
- Auto Protector
- Open Dripproof
- Sealed Ball Bearings
- 1081 Design
- 304 Brg. Shaft End
- Capacitor Start and Capacitor Start-Capacitor Run
- NEMA 56C Face Mount
- Rotation: CCW Pump End
- Sealed Switch Design
- 50 C Ambient
- 60 Hz
- 303 Stainless Shaft (56J & 56C)
Specifications:
- HP: 1
- RPM: 3450
- Volts: 115/230
- Max. Amps: 15.0/7.5
- Service Factor: 1.1
- THP: 1.1
- Frame: 56J
- Stock Number: UST1102
- Shaft: Thd.
- Approx. “AG”: 11
