Description

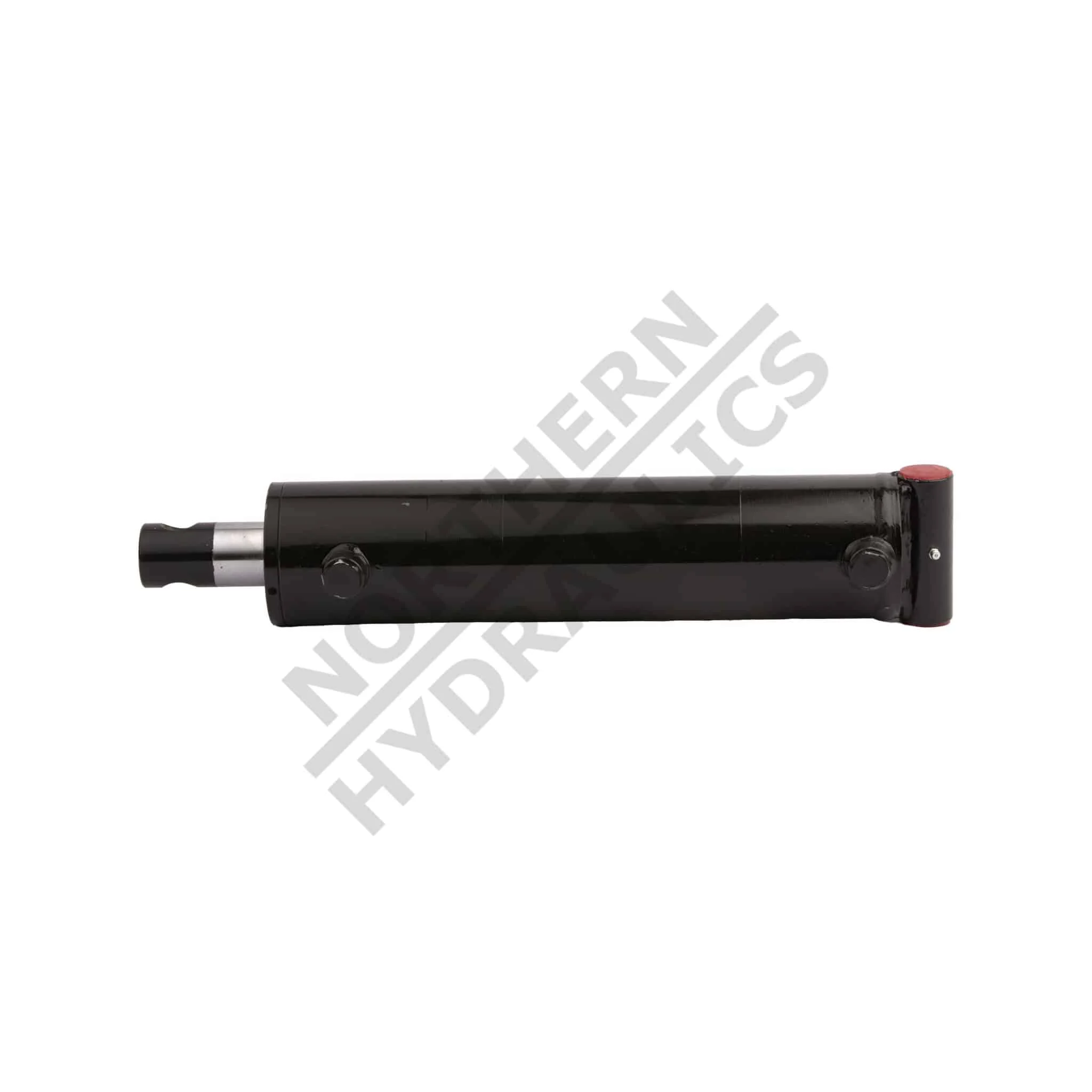

Introducing the 3.37″ x 30″ Double Acting Hydraulic Cylinder, engineered for efficiency and power in various heavy-duty applications. This robust hydraulic cylinder from Northern Hydraulics combines advanced manufacturing techniques with high-quality materials, ensuring reliability and longevity.
- Bore Diameter: 3.37 inches
- Stroke Length: 30 inches
- Operating Pressure: 3500 PSI
- Column Load Capacity: 12,100 lbs
- Oil Volume: 3.67 quarts
- Rod Diameter: 1.5 inches, Chrome Plated for enhanced durability
- Overall Length: 39.7 inches
- Extended Length: 68 inches
- Retracted Length: 38 inches
- Rod End Type: Pin Hole
- Action: Double Acting for smooth operation
- Construction Style: Welded for superior strength
- Ports: SAE 8 for easy integration
This hydraulic cylinder is perfect for a wide range of applications including construction, agriculture, and any heavy machinery that requires reliable and powerful hydraulic force. The double-acting design allows for efficient operation in both extending and retracting motions, giving you the versatility needed for various tasks.
NOTE: The chrome-plated rod is not induction hardened. Bent rods can occur due to misuse (improper measurements or incorrect application), and such cases are not covered under warranty!
Same-Day Shipping: All orders placed before 3 PM will be shipped the same day (excluding weekends and holidays).
Free Ground Shipping: Enjoy free ground shipping within the Continental U.S. on this product.
Tariff-FREE cylinders and made in Europe.
If you need assistance selecting the right hydraulic cylinder, feel free to contact us at (800) 823-4937.
