Description

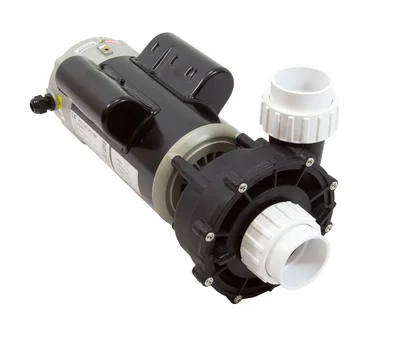

1.5 HP LX Spa Pump 1 Speed 115V 48WUA1501C-I (NF) without feet, requires a mounting bracket.
48WUA1501C-I (NF) series spa pump is 1 speed pump designed for SPA usage in North America that can achieve to high-speed for massage, 2” inlet and outlet for high-performance and low-noise perfected for SPA system. Used in Sundance & Jacuzzi Spas, this pump is baseless/has no feet – Bracket sold separately (Part number- 6000-532). Unions Included. Does NOT include pump cord
Cord Type sold separately, see 30-1001CVoltage 115vHorsepower 1.5 hpDischarge Location SideDischarge Size 2″ MBTFrame Size 48YNumber of Speeds 2Frequency (Hz) 60High Speed (Amp) 13.8Lo Speed (Amp) 3.848WUA1501C-I (NF)
Connects to 2-inch plumbing (about 3 inches across pump threads) and is a 1-speed pump. This pump also available without feet as a 2-speed pump 48WUA1501C-II (NF)
This is the version of the 48WUA1501C-I that does not have any feet. Used with a bracket (not included)
This version of the pump has no feet/is baseless and requires a mounting bracket (sold separately, see 6000-532 if needed or reuse existing bracket).
Need a pump cord? See 30-1001C. There is also an AMP to Molded plug adapter if needed – 30-1220-L6
Can replace these Sundance and Jacuzzi models: 6500-082, 6500-094, 6500-128, 6500-254, 6500-138, 6500-768, 6500-355, 6500-260, 6500-760, 6500-347,6500-262, 6500-762, 6500-757, 6500-134, 6500-265, 6500-765, 06120193-2, 06125198-2, 06120193-210, 6500-092, 6500-137, 06120195-1, 48WUA2002CIISUN, 6500-351, 6500-097_48WUA2002C-I (Single Speed). Unions Included. Does NOT include pump cord.
